164A10239X

Active

Amphenol CONEC

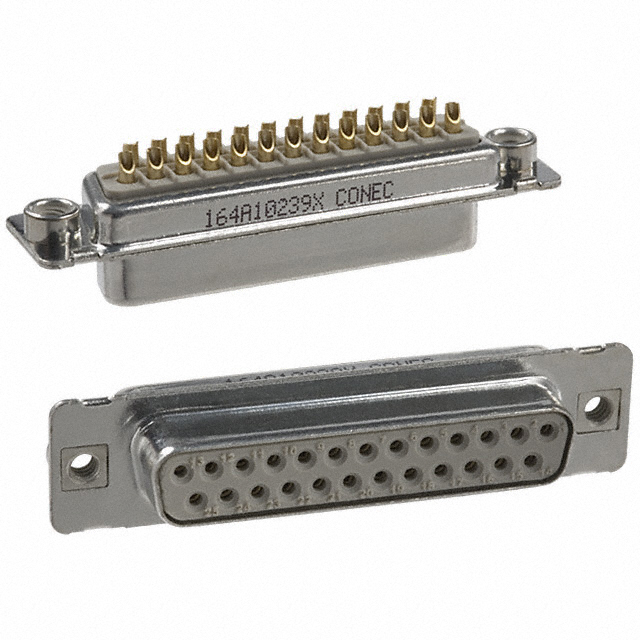

CONN D-SUB RCPT 25POS SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

164A10239X

Active

Amphenol CONEC

CONN D-SUB RCPT 25POS SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	164A10239X

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Cable Side
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Voltage Rating	125 VDC
Wire Gauge	20 AWG

164A102 Series

Part	Contact Type	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Number of Positions	Voltage Rating	Color	Connector Type	Shell Size, Connector Layout	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Flange Feature	Dielectric Material	Wire Gauge	Contact Finish	Mounting Type	Contact Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
Amphenol CONEC 164A10259X	Signal	7.5 A	-55 °C	125 °C	UL94 V-0	50	125 VDC	Black	Receptacle Female Sockets	5	3	8 çin	0.203 çm	D-Sub	Cable Side	Polybutylene Terephthalate (PBT) Glass Filled	20 AWG	Gold	Free Hanging (In-Line)	Copper Alloy
Amphenol CONEC 164A10269X	Signal	7.5 A	-55 °C	125 °C	UL94 V-0	9	125 VDC	Black	Receptacle Female Sockets		2	8 çin	0.203 çm	D-Sub	Cable Side (M3)	Polybutylene Terephthalate (PBT) Glass Filled	20 AWG	Gold	Free Hanging (In-Line)	Copper Alloy	DE E	1
Amphenol CONEC 164A10289X	Signal	7.5 A	-55 °C	125 °C	UL94 V-0		125 VDC	Black	Receptacle Female Sockets		2	8 çin	0.203 çm	D-Sub	Cable Side (M3)	Polybutylene Terephthalate (PBT) Glass Filled	20 AWG	Gold	Free Hanging (In-Line)	Copper Alloy	B DB	3
Amphenol CONEC 164A10239X	Signal	7.5 A	-55 °C	125 °C	UL94 V-0		125 VDC	Black	Receptacle Female Sockets		2	8 çin	0.203 çm	D-Sub	Cable Side	Polybutylene Terephthalate (PBT) Glass Filled	20 AWG	Gold	Free Hanging (In-Line)	Copper Alloy	B DB	3
Amphenol CONEC 164A10229X	Signal	7.5 A	-55 °C	125 °C	UL94 V-0	15	125 VDC	Black	Receptacle Female Sockets	2	2	8 çin	0.203 çm	D-Sub	Cable Side	Polybutylene Terephthalate (PBT) Glass Filled	20 AWG	Gold	Free Hanging (In-Line)	Copper Alloy
Amphenol CONEC 164A10209X									Receptacle Female Sockets

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 14.44
		10	$ 12.80
		25	$ 12.31
		50	$ 11.82
		100	$ 11.16
		250	$ 10.18
		450	$ 9.52
		950	$ 8.73

Description

General part information

164A102 Series

25 Position D-Sub Receptacle, Female Sockets Connector
