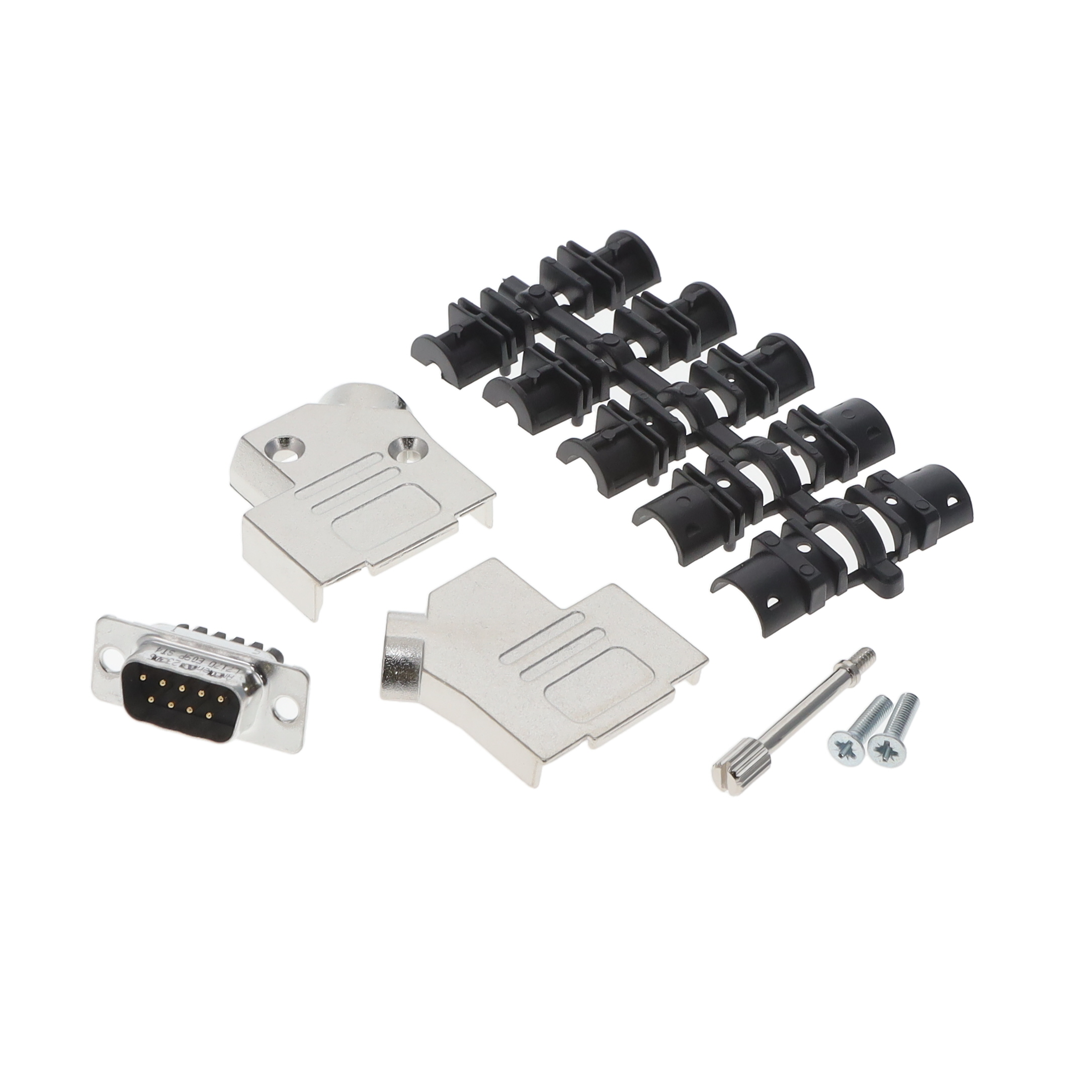

L717DE09PST4

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 9POS SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L717DE09PST4

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 9POS SCREW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L717DE09PST4

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Screw
Voltage Rating	300 VDC
Wire Gauge	18 AWG

L717DE09 Series

Part	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Number of Rows	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge	Contact Material	Flange Feature	Voltage Rating	Contact Type	Contact Finish	Number of Positions	Connector Style	Features	Mounting Type	Material Flammability Rating	Color	Current Rating (Amps)	Dielectric Material	Backset Spacing	Backset Spacing
Amphenol ICC (Commercial Products) L717DE09PST	DE E	1	-55 °C	125 °C	Screw	2	Male Pins Plug	15 µin	0.38 µm	18 AWG	Brass	Housing/Shell (Unthreaded)	300 VDC	Signal	Gold	9	D-Sub	Grounding Indents	Free Hanging (In-Line)	UL94 V-0	Black	7.5 A	Thermoplastic Glass Filled
Amphenol ICC (Commercial Products) L717DE09P	DE E	1	-55 °C	125 °C		2	Male Pins Plug	8 çin	0.203 çm		Brass	Housing/Shell (Unthreaded)	300 VDC	Signal	Gold	9	D-Sub	Grounding Indents	Free Hanging (In-Line)	UL94 V-0	Black	7.5 A	Thermoplastic Glass Filled
Amphenol ICC (Commercial Products) L717DE09P1AMN	DE E	1	-55 °C	125 °C	Solder	2	Male Pins Plug	8 çin	0.203 çm		Brass	Housing/Shell (Unthreaded)	300 VDC	Signal	Gold	9	D-Sub	Grounding Indents Mounting Brackets	Through Hole Right Angle	UL94 V-0	Black	7.5 A	Thermoplastic Glass Filled	0.406 in	10.3 mm
Amphenol ICC (Commercial Products) L717DE09PVF	DE E	1	-55 °C	125 °C		2	Male Pins Plug	8 çin	0.203 çm		Brass	Female Screwlock (4-40) Mating Side	300 VDC	Signal	Gold	9	D-Sub	Grounding Indents	Free Hanging (In-Line)	UL94 V-0	Black	7.5 A	Thermoplastic Glass Filled
Amphenol ICC (Commercial Products) L717DE09PA	DE E	1	-55 °C	125 °C	Solder	2	Male Pins Plug	8 çin	0.203 çm		Brass	Housing/Shell (Unthreaded)	300 VDC	Signal	Gold	9	D-Sub	Grounding Indents Mounting Brackets	Through Hole Right Angle	UL94 V-0	Black	7.5 A	Thermoplastic Glass Filled	0.319 in	8.1 mm
Amphenol ICC (Commercial Products) L717DE09PAM4RM6A608	DE E	1	-55 °C	125 °C	Solder	2	Male Pins Plug	8 çin	0.203 çm		Brass	Housing/Shell (Unthreaded)	300 VDC	Signal	Gold	9	D-Sub	Board Lock Grounding Indents Mounting Brackets	Through Hole Right Angle	UL94 V-0	Black	7.5 A	Thermoplastic Glass Filled	0.319 in	8.1 mm
Amphenol ICC (Commercial Products) L717DE09PF179	DE E	1	-55 °C	125 °C	Wire Wrap	2	Male Pins Plug	8 çin	0.203 çm		Brass	Housing/Shell (Unthreaded)	300 VDC	Signal	Gold	9	D-Sub	Grounding Indents	Panel Mount Through Hole	UL94 V-0	Black	7.5 A	Thermoplastic Glass Filled
Amphenol ICC (Commercial Products) L717DE09POL2	DE E	1	-55 °C	125 °C	Solder	2	Male Pins Plug	8 çin	0.203 çm		Brass	Housing/Shell (Unthreaded)	300 VDC	Signal	Gold	9	D-Sub	Grounding Indents	Through Hole	UL94 V-0	Black	7.5 A	Thermoplastic Glass Filled
Amphenol ICC (Commercial Products) L717DE09PAJ4	DE E	1	-55 °C	125 °C	Solder	2	Male Pins Plug	8 çin	0.203 çm		Brass	Housing/Shell (Unthreaded)	300 VDC	Signal	Gold	9	D-Sub	Grounding Indents Mounting Brackets	Through Hole Right Angle	UL94 V-0	Black	7.5 A	Thermoplastic Glass Filled	0.319 in	8.1 mm
Amphenol ICC (Commercial Products) L717DE09PST4	DE E	1	-55 °C	125 °C	Screw	2	Male Pins Plug	15 µin	0.38 µm	18 AWG	Brass	Housing/Shell (Unthreaded)	300 VDC	Signal	Gold	9	D-Sub	Grounding Indents	Free Hanging (In-Line)	UL94 V-0	Black	7.5 A	Thermoplastic Glass Filled

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 11.29
		10	$ 10.01
		25	$ 9.62
		50	$ 9.24
		100	$ 9.04

Description

General part information

L717DE09 Series

9 Position D-Sub Plug, Male Pins Connector
