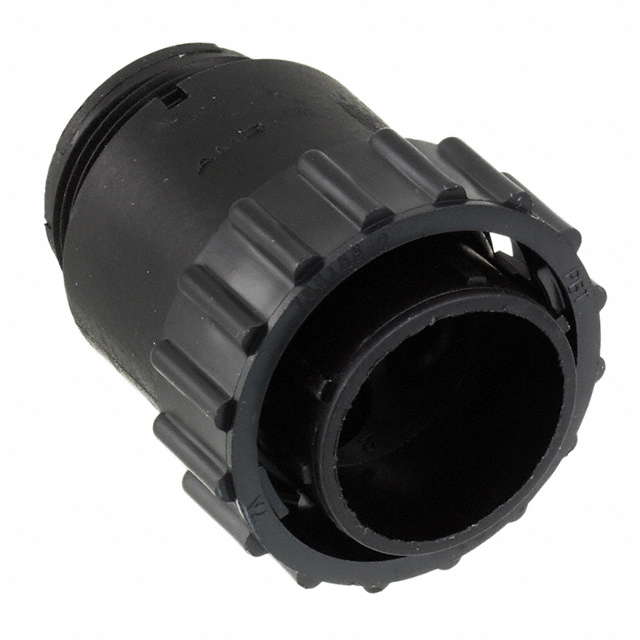

788188-2

Active

TE Connectivity AMP Connectors

CONN PLUG HSNG MALE 3POS INLINE

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSNG MALE 3POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	788188-2

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	8 Power
Contact Type	Crimp
Features	Coupling Nut
Housing Color	Black
Ingress Protection	IP67, IP65
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Shell Size - Insert	17-3
Shielding	Unshielded
Type	For Male Pins

CONN PLUG HSNG MALE 3POS INLINE

Part	Ingress Protection	Contact Type	Mounting Type	Material Flammability Rating	Type	Contact Shape	Note	Features	Housing Color	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Insert Material	Number of Positions	Shielding	Orientation	Contact Size	Shell Size - Insert
TE Connectivity AMP Connectors 788188-2	IP65, IP67	Crimp	Free Hanging (In-Line)	UL94 V-0	For Male Pins	Circular	Contacts Not Included	Coupling Nut	Black	Plug Housing	105 ░C	-55 °C	Thermoplastic	3	Unshielded	Keyed	8 Power	17-3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 (Power) Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut

Technical documentation and resources

No documents available
