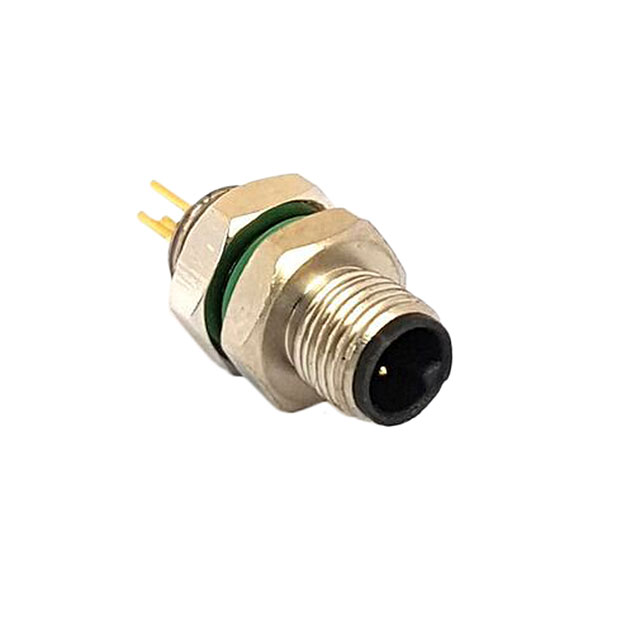

Specification	PXMBNI05FPM04APC

Applications	Automotive, Industrial, Instrumentation
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating	1 A
Fastening Type	Threaded
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Feature	Rear Side Nut, Bulkhead
Mounting Type	Panel Mount, Through Hole
Number of Positions	4
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-25 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M5-4
Termination	Solder
Voltage Rating	60 V

PXMBNI Series

...

Part	Shell Finish	Color	Shell Material	Operating Temperature (Min)	Operating Temperature (Max)	Fastening Type	Primary Material	Connector Type	Voltage Rating	Contact Finish - Mating	Number of Positions	Mounting Type	Orientation	Mounting Feature	Applications	Contact Material	Ingress Protection Description	Ingress Protection IP Rating	Shell Size - Insert	Current Rating	Termination	Shielding	Plating	Backshell Material	Features	Cable Opening (Max)	Cable Opening (Min)
BULGIN LIMITED PXMBNI05RPF04AFL001	Nickel	Silver	Brass	-25 °C	80 °C	Threaded	Metal	Female Sockets Plug	60 V	Gold	4	Panel Mount	A	Bulkhead Front Side Nut	Automotive Industrial Instrumentation	Phosphor Bronze	Dust Tight Waterproof	IP67	M5-4	1 A	Wire Leads
BULGIN LIMITED PXMBNI12FPM17AFLM16001	Nickel	Silver	Brass	-25 °C	80 °C	Threaded	Metal	Male Pins Receptacle	30 V	Gold	17	Panel Mount	A	Bulkhead Rear Side Nut	Industrial	Brass	Dust Tight Waterproof	IP67	M12-17	1.5 A	Wire Leads	Unshielded
BULGIN LIMITED PXMBNI12FIM12ASCPG7	Nickel	Silver	Brass	-25 °C	80 °C	Threaded	Metal	Male Pins Receptacle	30 V	Gold	12	Free Hanging (In-Line)	A		Industrial Instrumentation Medical	Brass	Dust Tight Waterproof	IP67	M12-12	1.5 A	Solder Cup		Nickel	Brass	Backshell	0.315 in	0.181 in
BULGIN LIMITED PXMBNI16RPF04ASCM16	Nickel	Silver	Brass	-25 °C	80 °C	Threaded	Metal	Female Sockets Plug	250 V	Gold	4	Panel Mount	A	Bulkhead	Industrial Instrumentation Medical	Phosphor Bronze	Dust Tight Waterproof	IP67	M16-4	7 A	Solder Cup	Shielded
BULGIN LIMITED PXMBNI12RAF08APCM12	Nickel	Silver	Brass	-25 °C	80 °C	Threaded	Metal	Female Sockets Plug	30 V	Gold	8	Panel Mount Right Angle Through Hole	A	Bulkhead Rear Side Nut	Industrial	Phosphor Bronze	Dust Tight Waterproof	IP67	M12-8	2 A	Solder	Unshielded			Board Guide Board Lock
BULGIN LIMITED PXMBNI12RPF08APCPG9	Nickel	Silver	Brass	-25 °C	80 °C	Threaded	Metal	Female Sockets Plug	30 V	Gold	8	Panel Mount Through Hole	A	Bulkhead Front Side Nut	Industrial Instrumentation Medical	Phosphor Bronze	Dust Tight Waterproof	IP67	M12-8	2 A	Solder
BULGIN LIMITED PXMBNI16FIM08ASCPG9	Nickel	Silver	Brass	-25 °C	80 °C	Threaded	Metal	Male Pins Receptacle	60 V	Gold	8	Free Hanging (In-Line)	A		Industrial Instrumentation Medical	Brass	Dust Tight Waterproof	IP67	M16-8	5 A	Solder Cup	Shielded	Nickel	Brass	Backshell	0.295 in	0.197 in
BULGIN LIMITED PXMBNI12FBF04TSCPG7	Nickel	Silver	Brass	-25 °C	80 °C	Threaded	Metal	Female Sockets Plug	250 V	Gold	4	Free Hanging (In-Line)	T		Industrial	Phosphor Bronze	Dust Tight Waterproof	IP67	M12-4	4 A	Solder Cup	Unshielded	Nickel	Brass	Backshell Coupling Nut
BULGIN LIMITED PXMBNI12RPF17AFLPG9001	Nickel	Silver	Brass	-25 °C	80 °C	Threaded	Metal	Female Sockets Plug	30 V	Gold	17	Panel Mount	A	Bulkhead Rear Side Nut	Industrial	Phosphor Bronze	Dust Tight Waterproof	IP67	M12-17	1.5 A	Wire Leads	Unshielded
BULGIN LIMITED PXMBNI12RPF17AFLM16001	Nickel	Silver	Brass	-25 °C	80 °C	Threaded	Metal	Female Sockets Plug	30 V	Gold	17	Panel Mount	A	Bulkhead Rear Side Nut	Industrial	Phosphor Bronze	Dust Tight Waterproof	IP67	M12-17	1.5 A	Wire Leads	Unshielded
