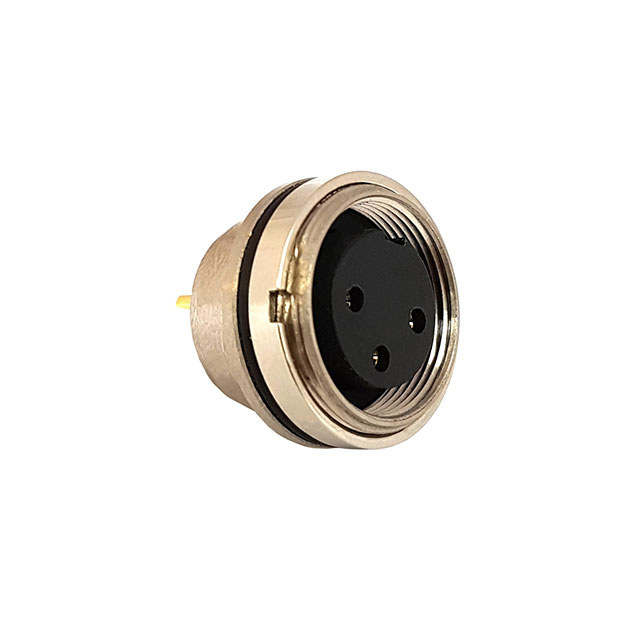

ActiveSENSOR CONNECTOR, BUCCANEER M16 SERIES, M16, PLUG, 4 CONTACTS, SOLDER SOCKET, STRAIGHT PANEL MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
PXMBNI16RPF04ASCM16
ActiveSENSOR CONNECTOR, BUCCANEER M16 SERIES, M16, PLUG, 4 CONTACTS, SOLDER SOCKET, STRAIGHT PANEL MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PXMBNI16RPF04ASCM16 |
|---|---|
| Applications | Medical, Industrial, Instrumentation |
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 7 A |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Feature | Bulkhead |
| Number of Positions | 4 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -25 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shell Size - Insert | M16-4 |
| Shielding | Shielded |
| Voltage Rating | 250 VDC |
PXMBNI Series
| Part | Orientation | Number of Positions | Contact Finish - Mating | Connector Type | Voltage Rating | Contact Material | Ingress Protection | Shell Finish | Shell Material | Primary Material | Color | Applications | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size - Insert | Mounting Feature | Current Rating (Amps) | Shielding | Cable Opening [custom] | Cable Opening [custom] | Backshell Material, Plating | Mounting Type | Features | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BULGIN LIMITED | A | 4 | Gold | Female Sockets Plug | 60 VDC | Phosphor Bronze | IP67 - Dust Tight Waterproof | Nickel | Brass | Metal | Silver | Automotive Industrial Instrumentation | Wire Leads | -25 °C | 80 C | M5-4 | Bulkhead - Front Side Nut | |||||||||||||||
BULGIN LIMITED | A | Gold | Male Pins Receptacle | 30 VDC | Brass | IP67 - Dust Tight Waterproof | Nickel | Brass | Metal | Silver | Industrial | Wire Leads | -25 °C | 80 C | M12-17 | Bulkhead - Rear Side Nut | 1.5 A | Unshielded | ||||||||||||||
BULGIN LIMITED | A | 12 | Gold | Male Pins Receptacle | 30 VDC | Brass | IP67 - Dust Tight Waterproof | Nickel | Brass | Metal | Silver | Industrial Instrumentation Medical | -25 °C | 80 C | M12-12 | 1.5 A | 0.181 in 0.315 in | 4.6 mm 8 mm | Brass Nickel | Free Hanging (In-Line) | Backshell | |||||||||||
BULGIN LIMITED | A | 4 | Gold | Female Sockets Plug | 250 VDC | Phosphor Bronze | IP67 - Dust Tight Waterproof | Nickel | Brass | Metal | Silver | Industrial Instrumentation Medical | -25 °C | 80 C | M16-4 | Bulkhead | 7 A | Shielded | ||||||||||||||
BULGIN LIMITED | A | 8 | Gold | Female Sockets Plug | 30 VDC | Phosphor Bronze | IP67 - Dust Tight Waterproof | Nickel | Brass | Metal | Silver | Industrial | Solder | -25 °C | 80 C | M12-8 | Bulkhead - Rear Side Nut | 2 A | Unshielded | Panel Mount Right Angle Through Hole | Board Guide Board Lock | |||||||||||
BULGIN LIMITED | A | 8 | Gold | Male Pins Receptacle | 60 VDC | Brass | IP67 - Dust Tight Waterproof | Nickel | Brass | Metal | Silver | Industrial Instrumentation Medical | -25 °C | 80 C | M16-8 | 5 A | Shielded | Brass Nickel | Free Hanging (In-Line) | Backshell | 0.197 in | 7.5 mm | 0.295 in | 5 mm | ||||||||
BULGIN LIMITED | T | 4 | Gold | Female Sockets Plug | 250 VDC | Phosphor Bronze | IP67 - Dust Tight Waterproof | Nickel | Brass | Metal | Silver | Industrial | -25 °C | 80 C | M12-4 | 4 A | Unshielded | Brass Nickel | Free Hanging (In-Line) | Backshell Coupling Nut | ||||||||||||
BULGIN LIMITED | A | Gold | Female Sockets Plug | 30 VDC | Phosphor Bronze | IP67 - Dust Tight Waterproof | Nickel | Brass | Metal | Silver | Industrial | Wire Leads | -25 °C | 80 C | M12-17 | Bulkhead - Rear Side Nut | 1.5 A | Unshielded | ||||||||||||||
BULGIN LIMITED | A | Gold | Female Sockets Plug | 30 VDC | Phosphor Bronze | IP67 - Dust Tight Waterproof | Nickel | Brass | Metal | Silver | Industrial | Wire Leads | -25 °C | 80 C | M12-17 | Bulkhead - Rear Side Nut | 1.5 A | Unshielded | ||||||||||||||
BULGIN LIMITED | A | Gold | Female Sockets Plug | 60 VDC | Phosphor Bronze | IP67 - Dust Tight Waterproof | Nickel | Brass | Metal | Silver | Industrial | -25 °C | 80 C | M8-3 | 3 A | Brass Nickel | Free Hanging (In-Line) | Backshell Coupling Nut | 0.138 in | 3.5 mm | 3 mm | 0.118 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PXMBNI Series
The M-series Buccaneer circular automation connectors from Bulgin provide an ideal connectivity solution for industrial automation technologies that require fast, secure and reliable connections with a high degree of environmental protection. Featuring a M-style threaded locking nut, Bulgin’s M-series offers an extensive choice of robust industry standard interconnect solutions for automation and control applications including M5 (waterproof), M8, M12, M16 and M23 variants. With A, B, D coded connector variants available throughout the range, Bulgin’s automation connectors are ideal for ensuring consistent and reliable actuator/sensor, fieldbus and Ethernet connections. Designed to decrease downtime and increase production efficiency, M-series provides reliable and uncompromised data, signal and power transmissions for industrial automation systems in harsh environments. These IP67 rated connectors range include field installable connectors, receptacles and overmoulded cable variants.
