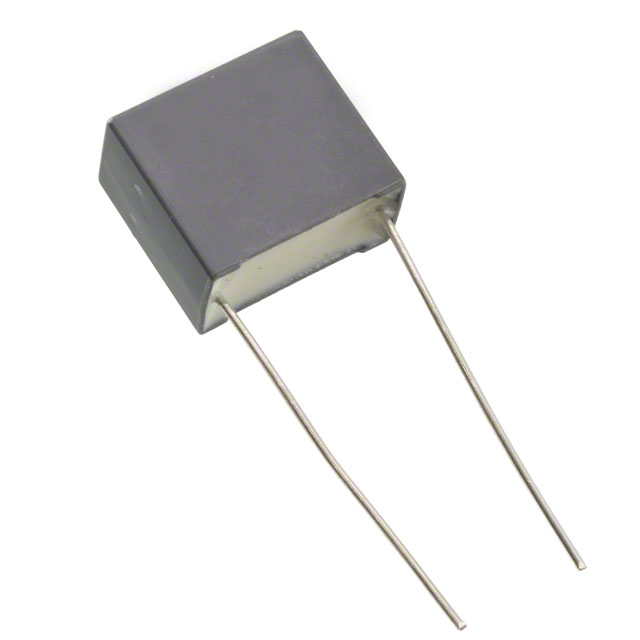

R75LI33304000K

Obsolete

KEMET

CAP FILM 0.33UF 10% 560VDC RAD

Search across all available documentation for this part.

Obsolete

KEMET

CAP FILM 0.33UF 10% 560VDC RAD

Technical Specifications

Parameters and characteristics for this part

Specification	R75LI33304000K

Applications	DC Link, DC Filtering
Capacitance	0.33 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max]	16.1 mm
Height - Seated (Max) [Max]	0.634 in
Lead Spacing	15 mm
Lead Spacing	0.591 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	18 mm
Size / Dimension [x]	0.709 in
Size / Dimension [y]	10 mm
Size / Dimension [y]	0.394 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	250 V
Voltage Rating - DC	560 V

Part	Lead Spacing	Lead Spacing	Applications	Tolerance	Package / Case	Voltage Rating - AC	Mounting Type	Termination	Dielectric Material	Voltage Rating - DC	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]
KEMET R75LI31504000K	15 mm	0.591 in	DC Filtering DC Link	10 %	Radial	250 V	Through Hole	PC Pins	Metallized Polypropylene (PP)	560 V	7.5 mm	18 mm	0.295 in	0.709 in	105 ░C	-55 °C	0.15 ÁF
KEMET R75LI33304000K	15 mm	0.591 in	DC Filtering DC Link	10 %	Radial	250 V	Through Hole	PC Pins	Metallized Polypropylene (PP)	560 V		18 mm	0.394 in	0.709 in	105 ░C	-55 °C	0.33 µF	16.1 mm	0.634 in	10 mm
KEMET R75LI32204000K	15 mm	0.591 in	DC Filtering DC Link	10 %	Radial	250 V	Through Hole	PC Pins	Metallized Polypropylene (PP)	560 V	8.5 mm	18 mm	0.335 in	0.709 in	105 ░C	-55 °C	0.22 µF	14.6 mm	0.575 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.17

General part information

0.33 µF Film Capacitor 250V 560V Polypropylene (PP), Metallized Radial
