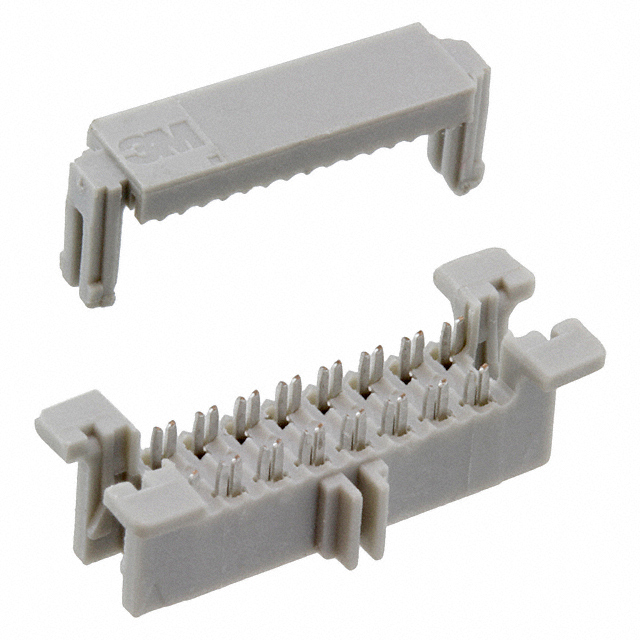

45116-010000

Active

3M (TC)

CONN RCPT 16POS IDC 30AWG GOLD

Search across all available documentation for this part.

Active

3M (TC)

CONN RCPT 16POS IDC 30AWG GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Contact Type	Features	Pitch [x]	Pitch [x]	Wire Type	Mounting Type	Contact Finish	Number of Rows	Contact Finish Thickness	Number of Positions	Row Spacing	Row Spacing	Wire Gauge	Connector Type	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Fastening Type
3M (TC) 45116-000000	Female Socket	Feed Through	0.05 in	1.27 mm	Ribbon Cable	Free Hanging (In-Line)	Gold	2	Flash	16	1.27 mm	0.05 in	30 AWG	Receptacle	IDC
3M (TC) 45116-010030	Female Socket	Feed Through Polarizing Key	0.05 in	1.27 mm	Ribbon Cable	Free Hanging (In-Line)	Gold	2		16	1.27 mm	0.05 in	30 AWG	Receptacle	IDC	0.76 Ám	30 Áin
3M (TC) 45116-010000	Female Socket	Feed Through Polarizing Key	0.05 in	1.27 mm	Ribbon Cable	Free Hanging (In-Line)	Gold	2	Flash	16	1.27 mm	0.05 in	30 AWG	Receptacle	IDC
3M (TC) 45116-000030	Female Socket	Feed Through	0.05 in	1.27 mm	Ribbon Cable	Free Hanging (In-Line)	Gold	2		16	1.27 mm	0.05 in	30 AWG	Receptacle	IDC	0.76 Ám	30 Áin
3M (TC) 45116-020030	Female Socket	Feed Through Polarizing Key	0.05 in	1.27 mm	Ribbon Cable	Free Hanging (In-Line)	Gold	2		16	1.27 mm	0.05 in	30 AWG	Receptacle	IDC	0.76 Ám	30 Áin	Friction Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	252	$ 4.21

General part information

16 Position Rectangular Receptacle Connector IDC Gold 30 AWG
