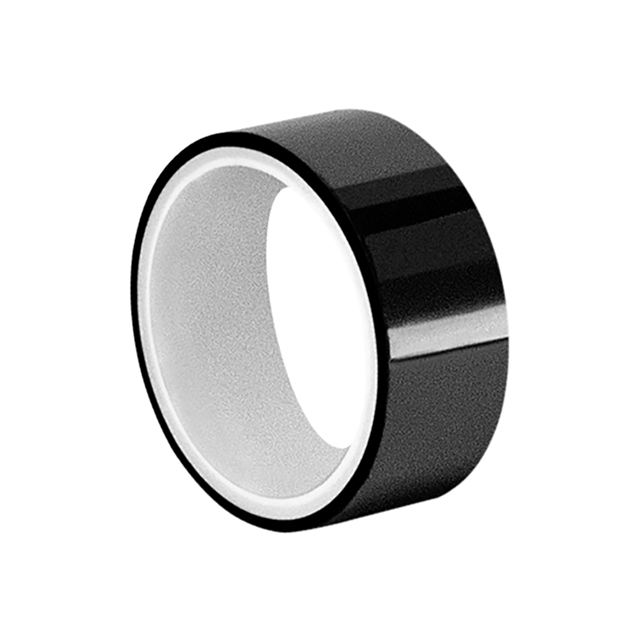

TC830M 0.610" X 72 YD BLACK

Active

TapeCase

TAPE METALLIZED POLY FILM BLK

Search across all available documentation for this part.

Active

TapeCase

TAPE METALLIZED POLY FILM BLK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TC830M 0.610" X 72 YD BLACK	TC830M Series

Adhesive	Acrylic	Acrylic
Backing, Carrier	Polyester Film	Polyester Film
Color	Black	Black
Length	-	66 m
Length	-	216 ft
Length	-	72 yd
Tape Type	Metallized Polyester Film	Metallized Polyester Film
Temperature Range [Max]	260 °C	260 °C
Temperature Range [Max]	500 °F	500 °F
Temperature Range [Min]	-73 °C	-73 °C
Temperature Range [Min]	-99 °F	-99 °F
Thickness	2 mils	2 mils
Thickness	0.002 in	0.002 in
Thickness	0.051 mm	0.051 mm
Thickness - Backing, Carrier	1.2 mils	1.2 mils
Thickness - Backing, Carrier	0.0012 "	0.0012 "
Thickness - Backing, Carrier	0.03 mm	0.03 mm
Usage	Splicing, Surface Finishing, Detecting	Splicing, Surface Finishing, Detecting

TAPE METALLIZED POLY BLK 72YD

Part	Thickness	Thickness	Thickness	Usage	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Max]	Color	Length	Length	Length	Adhesive	Tape Type	Backing, Carrier
TapeCase TC830M 1.56IN X 72YD BLACK	2 mils	0.002 in	0.051 mm	Detecting, Splicing, Surface Finishing	1.2 mils	0.0012 "	0.03 mm	-73 °C	260 °C	-99 °F	500 °F	Black	66 m	216 ft	72 yd	Acrylic	Metallized Polyester Film	Polyester Film
TapeCase TC830M 0.610" X 72 YD BLACK	2 mils	0.002 in	0.051 mm	Detecting, Splicing, Surface Finishing	1.2 mils	0.0012 "	0.03 mm	-73 °C	260 °C	-99 °F	500 °F	Black				Acrylic	Metallized Polyester Film	Polyester Film

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	17	$ 15.22

General part information

Metallized Polyester Film Tape Acrylic Adhesive Black X

Technical documentation and resources
