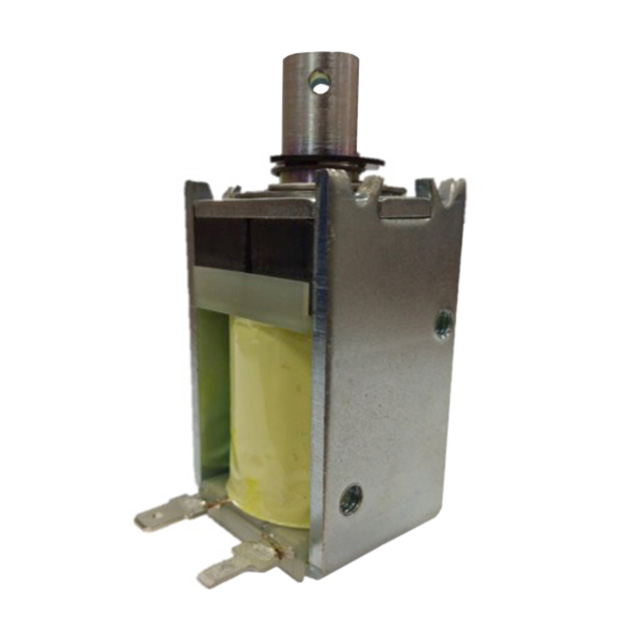

SOLENOID LATCH PULL INTER 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DSML-1153-24E
ActiveDelta Electronics
SOLENOID LATCH PULL INTER 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DSML-1153-24E |
|---|---|
| DC Resistance (DCR) | 29 Ohm |
| Diameter - Shaft [diameter] | 11.13 mm |
| Diameter - Shaft [diameter] | 0.438 in |
| Duty Cycle | Intermittent |
| Mounting Type | Chassis Mount |
| Power (Watts) | 20 W |
| Shaft Detail | Clevis |
| Size / Dimension [x] | 2.01 in |
| Size / Dimension [x] | 51.05 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 30.99 mm |
| Size / Dimension [z] | 1.22 in |
| Stroke Length | 0.75 in |
| Stroke Length | 19.05 mm |
| Technology | Electromechanical |
| Termination Style | Quick Connect - 0.110"/0.187" |
| Type | Open Frame Latching (Pull) |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 22.59 | |
| 10 | $ 20.08 | |||
| 25 | $ 19.07 | |||
| 50 | $ 18.07 | |||
| 100 | $ 17.07 | |||
| 250 | $ 15.56 | |||
| 500 | $ 14.56 | |||
Description
General part information
DSML-1153 Series
Intermittent Duty Solenoid Open Frame Latching (Pull) Type 0.750" (19.05mm) Stroke 24VDC Chassis Mount
