MSDS-04BMMC-SL7001
ActiveAmphenol LTW

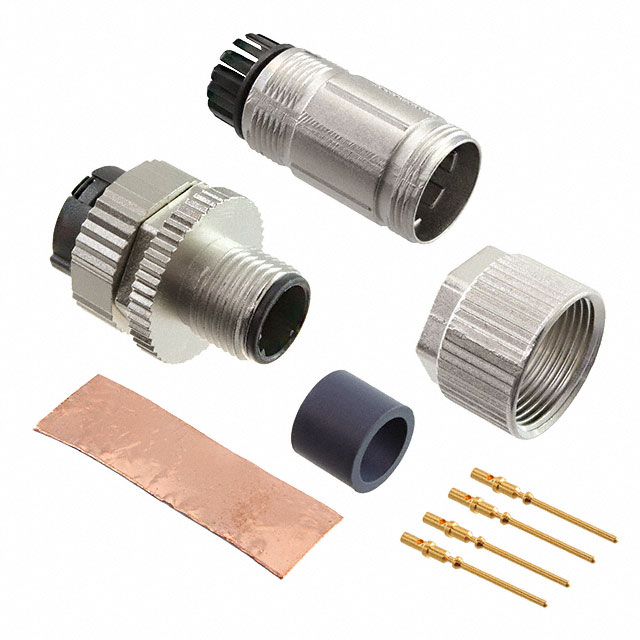

SENSOR CONNECTOR, M SERIES, M12, MALE, 4 POSITIONS, CRIMP PIN, STRAIGHT CABLE MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
MSDS-04BMMC-SL7001
ActiveAmphenol LTW
SENSOR CONNECTOR, M SERIES, M12, MALE, 4 POSITIONS, CRIMP PIN, STRAIGHT CABLE MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MSDS-04BMMC-SL7001 |
|---|---|
| Backshell Material, Plating | Nickel, Zinc Alloy |
| Cable Opening [Max] [custom] | 0.295 in |
| Cable Opening [Max] [custom] | 7.5 mm |
| Cable Opening [Min] [custom] | 4 mm |
| Cable Opening [Min] [custom] | 0.157 in |
| Color | Black, Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Features | Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Orientation | D |
| Shell Size - Insert | M12-4 |
| Shielding | Shielded |
| Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.65 | |
| 10 | $ 15.29 | |||
| 25 | $ 14.50 | |||
| 50 | $ 14.29 | |||
| 100 | $ 12.60 | |||
| 250 | $ 11.76 | |||
| 500 | $ 11.51 | |||
Description
General part information
MSDS-04BMMC Series
4 Position Circular Connector Receptacle, Male Pins Crimp
