Technical Specifications
Parameters and characteristics for this part

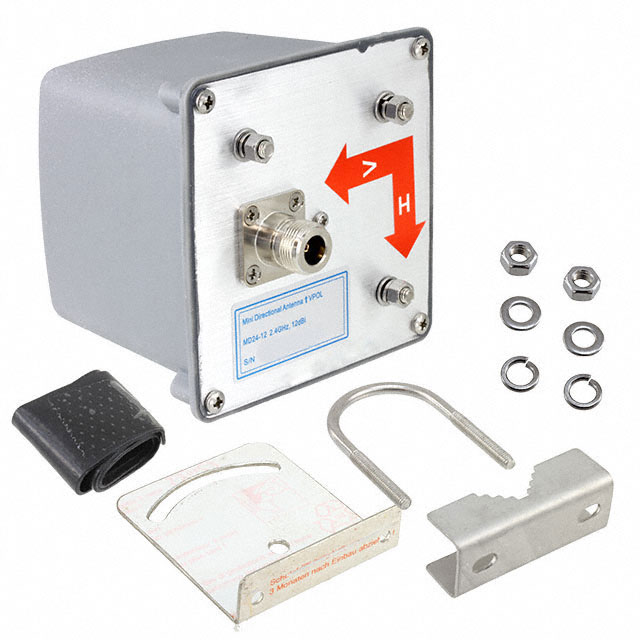

| Specification | MD24-12 |
|---|---|
| Antenna Type | Panel |
| Applications | WiMax™, WLAN |
| Frequency Range [Max] | 2.483 GHz |
| Frequency Range [Min] | 2.4 GHz |
| Gain | 12 dBi |
| Height (Max) [Max] | 102 mm |
| Height (Max) [Max] | 4.016 in |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 100 W |
| Return Loss | -14 dB |
| RF Family/Standard | WiFi |
| Termination | N Type Female |
| VSWR | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 40.74 | |
| 10 | $ 38.00 | |||
| 25 | $ 36.41 | |||
| 100 | $ 33.00 | |||
| 250 | $ 31.86 | |||
Description
General part information
MD24 Series
Panel Antenna, Single Band, Wi-Fi, External Mount, Pole/Mast/Bracket Mount, N-type, Directional, Single Port, > 6 dBi Peak Gain
