CTWR021A

Active

Essentra Access Solutions

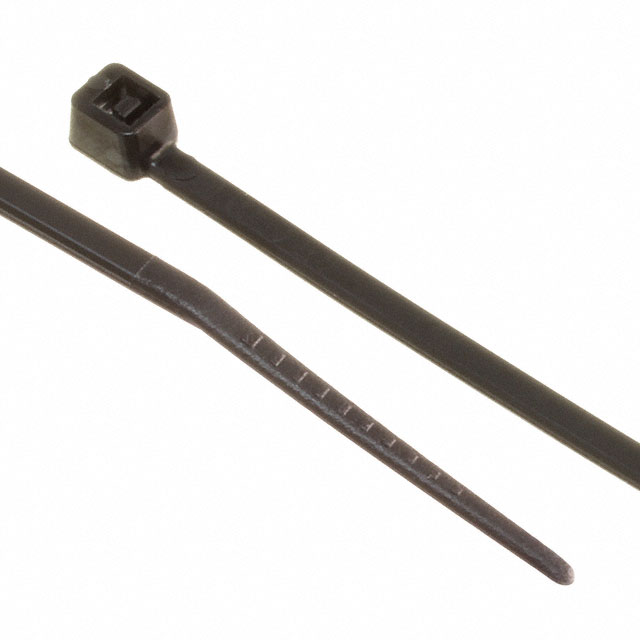

CABLE TIE, NYLON 6.6 (POLYAMIDE 6.6), BLACK, 160 MM, 4.8 MM, 42 MM, 222 N

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Manufacturer Catalogue EN

CTWR021A

Active

Essentra Access Solutions

CABLE TIE, NYLON 6.6 (POLYAMIDE 6.6), BLACK, 160 MM, 4.8 MM, 42 MM, 222 N

Deep-Dive with AI

DocumentsDatasheet Manufacturer Catalogue EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CTWR021A

Bundle Diameter [diameter]	42 mm
Bundle Diameter [diameter]	1.65 in
Color	Black
Features	Weather Resistant, UV Resistant
Length - Actual [x]	160 mm
Length - Actual [x]	0.525 '
Length - Actual [x]	6.3 "
Length - Approximate [x]	6.25 in
Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Tensile Strength	22.68 kg
Tensile Strength	50 lbs
Width [y]	4.8 mm
Width [y]	0.189 in
Wire/Cable Tie Type	Standard, Locking

CTWR Series

Part	Tensile Strength	Tensile Strength	Width [x]	Width [x]	Color	Bundle Diameter	Bundle Diameter	Length - Approximate	Features	Length - Actual [x]	Length - Actual [x]	Material	Wire/Cable Tie Type	Mounting Type	Length - Approximate [x]	Width	Width	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Length - Actual [x]	Width [y]	Width [y]	Width [x]	Length - Actual	Length - Actual	Length - Actual
Essentra Access Solutions CTWR073A	175 lbs	79.4 kg	8 mm	0.315 in	Black	5.24 in	133 mm	17.75 in	UV Resistant Weather Resistant	1.476 ft	450 mm	Polyamide (PA66) Nylon 6/6	Locking Standard	Free Hanging (In-Line)
Essentra Access Solutions CTWR081A	175 lbs	79.4 kg			Black				UV Resistant Weather Resistant	3.83 ft	1.17 m	Polyamide (PA66) Nylon 6/6	Locking Standard	Free Hanging (In-Line)	46 in	9 mm	0.354 "	14.17 "	360 mm
Essentra Access Solutions CTWR021A	50 lbs	22.68 kg			Black				UV Resistant Weather Resistant	0.525 '	160 mm	Polyamide (PA66) Nylon 6/6	Locking Standard	Free Hanging (In-Line)	6.25 in			1.65 in	42 mm	6.3 "	4.8 mm	0.189 in
Essentra Access Solutions CTWR012A	40 lbs	18.14 kg	0.141 in		Black			8 in	UV Resistant Weather Resistant	0.666 ft	203 mm	Polyamide (PA66) Nylon 6/6	Locking Standard	Free Hanging (In-Line)				2.17 in	55 mm	7.99 "			3.58 mm
Essentra Access Solutions CTWR016A	40 lbs	18.14 kg	0.141 in		Black				UV Resistant Weather Resistant	1.083 ft	330 mm	Polyamide (PA66) Nylon 6/6	Locking Standard	Free Hanging (In-Line)	13 in			3.78 in	96 mm				3.58 mm
Essentra Access Solutions CTWR007A	18 lbs	8.16 kg	2.5 mm	0.098 in	Black			8 in	UV Resistant Weather Resistant	0.666 ft	203 mm	Polyamide (PA66) Nylon 6/6	Locking Standard	Free Hanging (In-Line)				2.17 in	55 mm	7.99 "
Essentra Access Solutions CTWR023A	50 lbs	22.68 kg			Black			9.75 "	UV Resistant Weather Resistant			Polyamide (PA66) Nylon 6/6	Locking Standard	Free Hanging (In-Line)							4.8 mm	0.189 in		250 mm	0.82 ft	9.84 in
Essentra Access Solutions CTWR022A	50 lbs	22.68 kg			Black		52.07 mm	7.5 in	UV Resistant Weather Resistant	0.623 ft	190 mm	Polyamide (PA66) Nylon 6/6	Locking Standard	Free Hanging (In-Line)				2.05 in		7.48 in	4.8 mm	0.189 in
Essentra Access Solutions CTWR070A	120 lbs	54.43 kg			Black	3.9 in	99 mm	13.5 in	UV Resistant Weather Resistant	1.125 ft	342.9 mm	Polyamide (PA66) Nylon 6/6	Locking Standard	Free Hanging (In-Line)							7.59 mm	0.299 in
Essentra Access Solutions CTWR072A	120 lbs	54.43 kg			Black			15 in	UV Resistant Weather Resistant			Polyamide (PA66) Nylon 6/6	Locking Standard	Free Hanging (In-Line)				4.33 "	110 mm		7.59 mm	0.299 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 0.11
		200	$ 0.10
		300	$ 0.10
		500	$ 0.09
		700	$ 0.09
		1000	$ 0.09
		2500	$ 0.08
		5000	$ 0.07
		10000	$ 0.07

Description

General part information

CTWR Series

Standard, Locking Black 1.65" (42.00mm) 0.189" (4.80mm) 50 lbs (22.68 kg)

Documents

Technical documentation and resources

Datasheet

Manufacturer Catalogue EN

Datasheet
