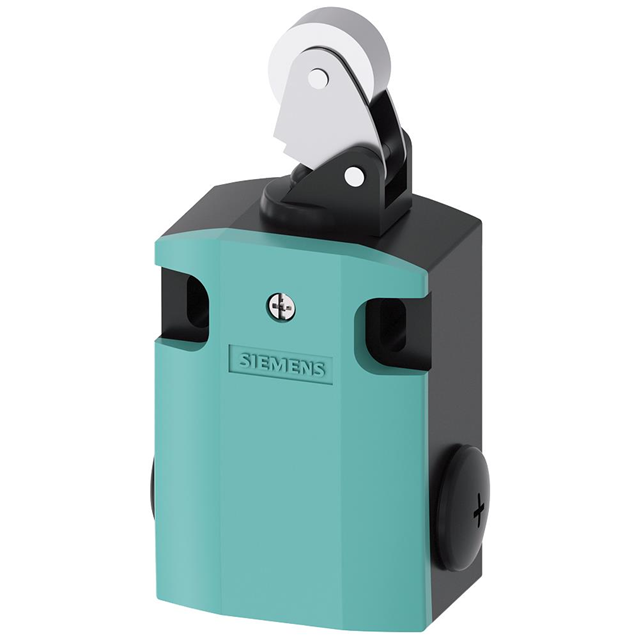

Specification	3SE51220CE02

Actuator Type	Top Rotary, Roller
Circuit	DPST-NO/NC
Current Rating	6 A, 3 A
Electrical Life (Cycles)	100000 Cycles
Ingress Protection Description	Dust Tight, Waterproof, Water Resistant
Ingress Protection IP Rating	IP67, IP66
Mechanical Life (Cycles)	15000000 Cycles
Mounting Type	Chassis Mount
Operating Force	1020 gf
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Switch Function	On-Mom, Off-Mom
Termination Style	Screw Terminal
Voltage Rating - AC	125 V
Voltage Rating - DC	24 V

3SE5122 Series

Part	Ingress Protection Description	Ingress Protection IP Rating	Termination Style	Voltage Rating - AC	Actuator Type	Electrical Life (Cycles)	Current Rating	Switch Function	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Voltage Rating - DC	Circuit	Mechanical Life (Cycles)	Operating Force	Overtravel (Linear)
Siemens 3SE51220BA001CA0	Dust Tight Water Resistant Waterproof	IP66 IP67	Screw Terminal	125 V	Round (Pin Plunger)	100000 Cycles	3 A 6 A	Off-Mom On-Mom	85 °C	-25 °C	Chassis Mount	24 V	DPST-NO/NC	15000000 Cycles	2039 gf
Siemens 3SE51220KB01	Dust Tight Water Resistant Waterproof	IP66 IP67	Screw Terminal	125 V	Round (Pin Plunger)	100000 Cycles	3 A 6 A	Off-Mom On-Mom	85 °C	-25 °C	Chassis Mount	24 V	3PST-2NC/1NO	15000000 Cycles	2039 gf
Siemens 3SE51220PC02	Dust Tight Water Resistant Waterproof	IP66 IP67	Screw Terminal	125 V	Round (Pin Plunger)	100000 Cycles	3 A 6 A	Off-Mom On-Mom	85 °C	-25 °C	Chassis Mount	24 V	3PST-2NO/1NC	15000000 Cycles	2039 gf	0.118 in
Siemens 3SE51220LH50	Dust Tight Water Resistant Waterproof	IP66 IP67	Screw Terminal	125 V	Adjustable Roller Side Rotary	100000 Cycles	3 A 6 A	Off-Mom On-Mom	85 °C	-25 °C	Chassis Mount	24 V	3PST-2NC/1NO	15000000 Cycles
Siemens 3SE51220MA00	Dust Tight Water Resistant Waterproof	IP66 IP67	Screw Terminal	125 V	Round (Pin Plunger)	100000 Cycles	3 A 6 A	Off-Mom On-Mom	85 °C	-25 °C	Chassis Mount	24 V	3PST-2NC/1NO	15000000 Cycles	2039 gf
Siemens 3SE51220KA001AJ0	Dust Tight Water Resistant Waterproof	IP66 IP67	Screw Terminal	125 V	Round (Pin Plunger)	100000 Cycles	3 A 6 A	Off-Mom On-Mom	85 °C	-40 °C	Chassis Mount	24 V	3PST-2NC/1NO	15000000 Cycles	2039 gf
Siemens 3SE51220CA00	Dust Tight Water Resistant Waterproof	IP66 IP67	Screw Terminal	125 V	Round (Pin Plunger)	100000 Cycles	3 A 6 A	Off-Mom On-Mom	85 °C	-25 °C	Chassis Mount	24 V	DPST-NO/NC	15000000 Cycles	2039 gf
Siemens 3SE51220PE01	Dust Tight Water Resistant Waterproof	IP66 IP67	Screw Terminal	125 V	Roller Top Rotary	100000 Cycles	3 A 6 A	Off-Mom On-Mom	85 °C	-25 °C	Chassis Mount	24 V	3PST-2NO/1NC	15000000 Cycles	1020 gf
Siemens 3SE51220BB01	Dust Tight Water Resistant Waterproof	IP66 IP67	Screw Terminal	125 V	Round (Pin Plunger)	100000 Cycles	6 A 550 mA	Off-Mom On-Mom	85 °C	-25 °C	Chassis Mount	125 V	DPST-NO/NC	15000000 Cycles	2039 gf
Siemens 3SE51220BF01	Dust Tight Water Resistant Waterproof	IP66 IP67	Screw Terminal	125 V	Roller Top Rotary	100000 Cycles	3 A 6 A	Off-Mom On-Mom	85 °C	-25 °C	Chassis Mount	24 V	DPST-NO/NC	15000000 Cycles	1020 gf
