ZOV320K40E

Active

Bourns Inc.

VARISTOR 320 K 40 E

Search across all available documentation for this part.

Active

Bourns Inc.

VARISTOR 320 K 40 E

Technical Specifications

Parameters and characteristics commom to parts in this series

VARISTOR 320 K 40 E

Part	Varistor Voltage (Min) [Min]	Varistor Voltage (Typ)	Capacitance @ Frequency	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Varistor Voltage (Max) [Max]	Maximum AC Volts [Max]	Package / Case	Package / Case [x]	Current - Surge	Energy	Maximum DC Volts [Max]	Number of Circuits
Bourns Inc. ZOV320K40E	459 V	510 V	3050 pF	Through Hole	85 °C	-40 °C	561 V	320 V	Tabs	40 mm	45 kA	1620 J	420 V	1
Bourns Inc. ZOV320K25E	459 V	510 V	1240 pF	Through Hole	85 °C	-40 °C	561 V	320 V	Tabs	25 mm	20 kA	680 J	420 V	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	512	$ 5.77

General part information

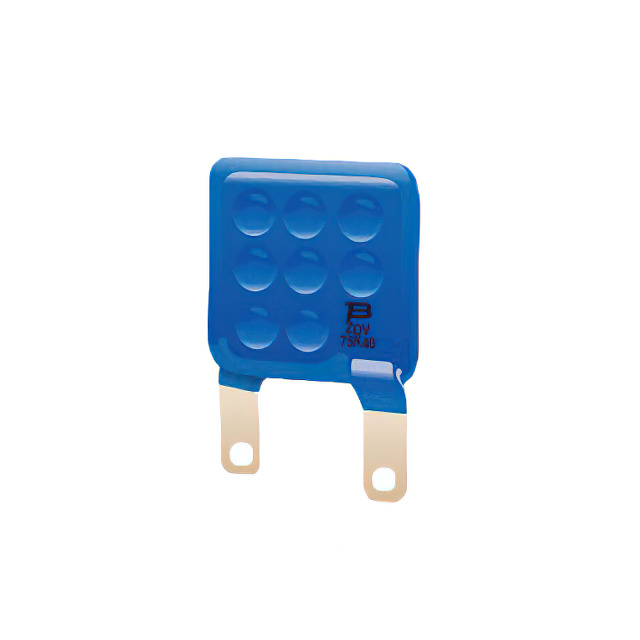

510 V 45 kA Varistor 1 Circuit Through Hole Square 40mm, Tabs
