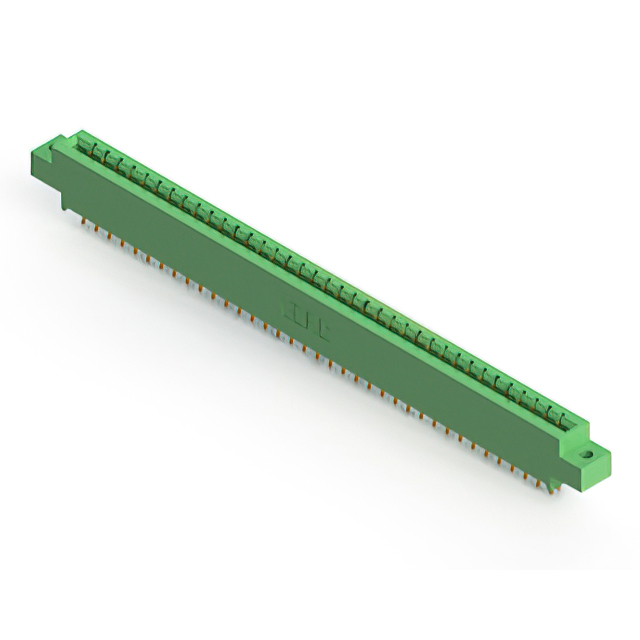

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 74 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN +1

333-074-556-802

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 74 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	333-074-556-802

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Board Edge, Straddle Mount
Number of Positions	74
Number of Positions/Bay/Row [custom]	37
Number of Positions/Bay/Row [custom]	37
Number of Positions/Bay/Row [custom]	37
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

333-074 Series

...

Part	Number of Rows	Card Type	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Color	Mounting Type	Read Out	Termination Rows	Gender	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Number of Positions	Termination	Material - Insulation	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Contact Material	Flange Feature	Flange Feature	Features
EDAC Inc. 333-074-540-804	2	Non Specified - Dual Edge	-40 °C	105 ░C	0.156 in	Top Mount Opening Unthreaded	3.96 mm	Green	Through Hole	Dual	2	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Gold	10 Áin	0.25 Ám	0.156 in	3.96 mm	74	Wire Wrap	Polyester Thermoplastic	37	37	37	Copper Alloy
EDAC Inc. 333-074-541-207	2	Non Specified - Dual Edge	-40 °C	105 ░C		Flush Mount M3 Threaded Insert Top Opening		Green	Through Hole	Dual	2	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Gold	10 Áin	0.25 Ám	0.156 in	3.96 mm	74	Wire Wrap	Polyester Thermoplastic	37	37	37	Copper Alloy
EDAC Inc. 333-074-560-802	2	Non Specified - Dual Edge	-40 °C	105 ░C				Green	Board Edge Straddle Mount	Dual	2	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Gold	10 Áin	0.25 Ám	0.156 in	3.96 mm	74	Solder	Polyester Thermoplastic	37	37	37	Copper Alloy	3.25 mm	0.128 in	Card Extender
EDAC Inc. 333-074-544-207	2	Non Specified - Dual Edge	-40 °C	105 ░C		Flush Mount M3 Threaded Insert Top Opening		Green	Through Hole	Dual	2	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Gold	10 Áin	0.25 Ám	0.156 in	3.96 mm	74	Wire Wrap	Polyester Thermoplastic	37	37	37	Copper Alloy
EDAC Inc. 333-074-560-212	2	Non Specified - Dual Edge	-40 °C	105 ░C	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	Green	Board Edge Straddle Mount	Dual	2	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Gold	10 Áin	0.25 Ám	0.156 in	3.96 mm	74	Solder	Polyester Thermoplastic	37	37	37	Copper Alloy			Card Extender
EDAC Inc. 333-074-556-802	2	Non Specified - Dual Edge	-40 °C	105 ░C				Green	Board Edge Straddle Mount	Dual	2	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Gold	10 Áin	0.25 Ám	0.156 in	3.96 mm	74	Solder	Polyester Thermoplastic	37	37	37	Copper Alloy	3.25 mm	0.128 in	Card Extender
EDAC Inc. 333-074-520-208	2	Non Specified - Dual Edge	-40 °C	105 ░C		4-40 Flush Mount Threaded Insert Top Opening		Green	Through Hole	Dual	2	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Gold	10 Áin	0.25 Ám	0.156 in	3.96 mm	74	Solder	Polyester Thermoplastic	37	37	37	Copper Alloy
EDAC Inc. 333-074-559-807	2	Non Specified - Dual Edge	-40 °C	105 ░C		M3 Threaded Insert Top Mount Opening		Green	Through Hole Right Angle	Dual	2	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Gold	10 Áin	0.25 Ám	0.156 in	3.96 mm	74	Solder	Polyester Thermoplastic	37	37	37	Copper Alloy
EDAC Inc. 333-074-540-212	2	Non Specified - Dual Edge	-40 °C	105 ░C	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	Green	Through Hole	Dual	2	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Gold	10 Áin	0.25 Ám	0.156 in	3.96 mm	74	Wire Wrap	Polyester Thermoplastic	37	37	37	Copper Alloy
EDAC Inc. 333-074-520-807	2	Non Specified - Dual Edge	-40 °C	105 ░C		M3 Threaded Insert Top Mount Opening		Green	Through Hole	Dual	2	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Gold	10 Áin	0.25 Ám	0.156 in	3.96 mm	74	Solder	Polyester Thermoplastic	37	37	37	Copper Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 13.09
Newark	Each	1	$ 12.08
		100	$ 8.75
		250	$ 7.47
		500	$ 6.86
		1000	$ 5.88

Description

General part information

333-074 Series

74 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
