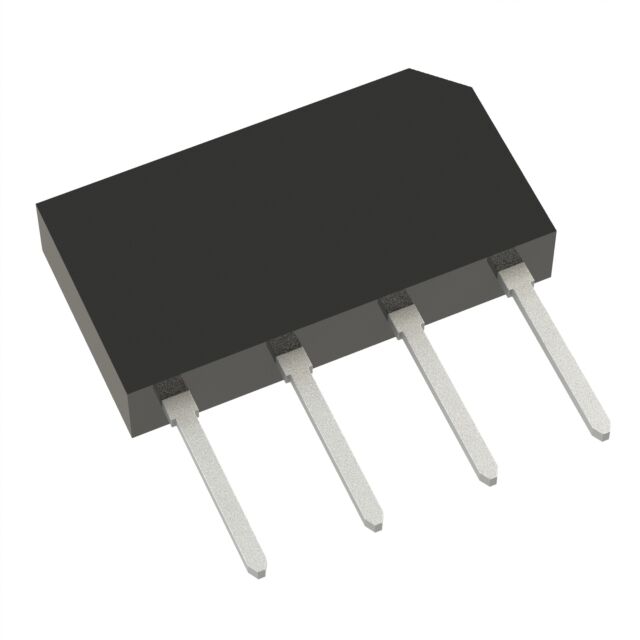

B40C3700A

Active

Diotec Semiconductor

BRIDGE RECT 1P 80V 2.7A 4-SIL

Search across all available documentation for this part.

Active

Diotec Semiconductor

BRIDGE RECT 1P 80V 2.7A 4-SIL

Technical Specifications

Parameters and characteristics for this part

Specification	B40C3700A

Current - Average Rectified (Io)	2.7 A
Current - Reverse Leakage @ Vr	5 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C
Package / Case	4-ESIP
Supplier Device Package	4-SIL
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1 V
Voltage - Peak Reverse (Max) [Max]	80 V

BRIDGE RECT 1P 80V 2.7A 4-SIL

Part	Mounting Type	Technology	Voltage - Peak Reverse (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Operating Temperature [Max]	Operating Temperature [Min]	Diode Type	Supplier Device Package	Package / Case	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr
Diotec Semiconductor B40C3700A	Through Hole	Standard	80 V	1 V	150 °C	-50 °C	Single Phase	4-SIL	4-ESIP	2.7 A	5 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 80 V Through Hole 4-SIL
