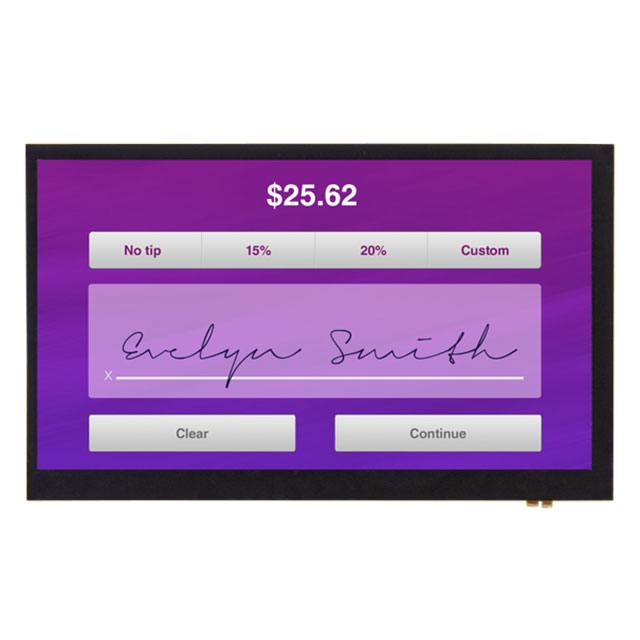

DT070BTFT-HB-TS
ObsoleteDisplaytech
DISPLAY MODULE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DT070BTFT-HB-TS
ObsoleteDisplaytech
DISPLAY MODULE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DT070BTFT-HB-TS | DT070 Series |
|---|---|---|
| Backlight | LED | LED |
| Diagonal Screen Size | 177.8 mm | 177.8 mm |
| Diagonal Screen Size | 7 in | 7 in |
| Display Mode | Transmissive | Transmissive |
| Display Type | TFT - Color | TFT - Color |
| Dot Pitch | - | 0.18 mm |
| Dot Pitch | - | 0.19 mm |
| Dot Pixels | - | WVGA |
| Dot Pixels [x] | 1024 | 800 - 1024 |
| Dot Pixels [y] | 600 pixels | 480 - 600 |
| Graphics Color | Green, Red, Blue | Green, Red, Blue |
| Interface | LVDS | Parallel, LVDS |
| Interface | - | 24 Bit |
| Touchscreen | Resistive | Capacitive, Resistive |
| Viewing Area | - | 154.08 mm |
| Viewing Area [y] | 154.21 mm | 85.92 - 154.21 mm |
| Viewing Area [z] | 85.92 mm | 85.92 mm |
DT070 Series
LCD MODULE
| Part | Viewing Area [x] | Viewing Area [y] | Graphics Color | Display Mode | Interface | Interface | Backlight | Touchscreen | Dot Pitch [y] | Dot Pitch [x] | Display Type | Diagonal Screen Size | Diagonal Screen Size | Dot Pixels | Dot Pixels [x] | Dot Pixels [y] | Viewing Area [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Displaytech DT070CTFT-PTS | 154.08 mm | 85.92 mm | Blue, Green, Red | Transmissive | Parallel | 24 Bit | LED | Capacitive | 0.18 mm | 0.19 mm | TFT - Color | 177.8 mm | 7 in | WVGA | 800 | 480 | |
Displaytech DT070BTFT-PTS1 | 154.21 mm | Blue, Green, Red | Transmissive | LVDS | LED | Capacitive | TFT - Color | 177.8 mm | 7 in | 1024 | 600 pixels | 85.92 mm | |||||
Displaytech DT070BTFT | 154.21 mm | Blue, Green, Red | Transmissive | LVDS | LED | TFT - Color | 177.8 mm | 7 in | 1024 | 600 pixels | 85.92 mm | ||||||
Displaytech DT070CTFT | 154.08 mm | 85.92 mm | Blue, Green, Red | Transmissive | Parallel | 24 Bit | LED | 0.18 mm | 0.19 mm | TFT - Color | 177.8 mm | 7 in | WVGA | 800 | 480 | ||
Displaytech DT070BTFT-HB | 154.21 mm | Blue, Green, Red | Transmissive | LVDS | LED | TFT - Color | 177.8 mm | 7 in | 1024 | 600 pixels | 85.92 mm | ||||||
Displaytech DT070CTFT-TS | 154.08 mm | 85.92 mm | Blue, Green, Red | Transmissive | Parallel | 24 Bit | LED | Resistive | 0.18 mm | 0.19 mm | TFT - Color | 177.8 mm | 7 in | WVGA | 800 | 480 | |
Displaytech DT070BTFT-TS | 154.21 mm | Blue, Green, Red | Transmissive | LVDS | LED | Resistive | TFT - Color | 177.8 mm | 7 in | 1024 | 600 pixels | 85.92 mm | |||||
Displaytech DT070BTFT-HB-TS | 154.21 mm | Blue, Green, Red | Transmissive | LVDS | LED | Resistive | TFT - Color | 177.8 mm | 7 in | 1024 | 600 pixels | 85.92 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
DT070 Series
Resistive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color LVDS 7" (177.80mm) 1024 x 600
