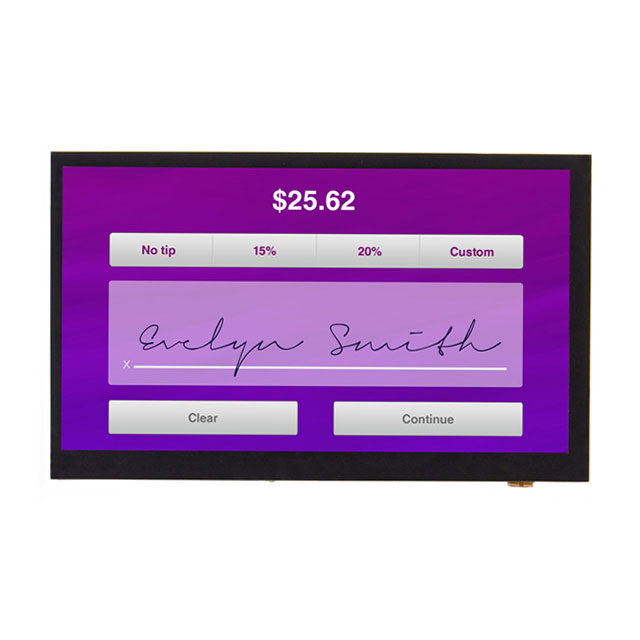

DT070BTFT-PTS1

Obsolete

Displaytech

LCD DISP TFT 7.0" 1024X600 IPS

Search across all available documentation for this part.

Obsolete

Displaytech

LCD DISP TFT 7.0" 1024X600 IPS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Capacitive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color LVDS 7" (177.80mm) 1024 x 600

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

LCD MODULE

Part	Viewing Area [x]	Viewing Area [y]	Graphics Color	Display Mode	Interface	Interface	Backlight	Touchscreen	Dot Pitch [y]	Dot Pitch [x]	Display Type	Diagonal Screen Size	Diagonal Screen Size	Dot Pixels	Dot Pixels [x]	Dot Pixels [y]	Viewing Area [z]
Displaytech DT070CTFT-PTS	154.08 mm	85.92 mm	Blue, Green, Red	Transmissive	Parallel	24 Bit	LED	Capacitive	0.18 mm	0.19 mm	TFT - Color	177.8 mm	7 in	WVGA	800	480
Displaytech DT070BTFT-PTS1		154.21 mm	Blue, Green, Red	Transmissive	LVDS		LED	Capacitive			TFT - Color	177.8 mm	7 in		1024	600 pixels	85.92 mm
Displaytech DT070BTFT		154.21 mm	Blue, Green, Red	Transmissive	LVDS		LED				TFT - Color	177.8 mm	7 in		1024	600 pixels	85.92 mm
Displaytech DT070CTFT	154.08 mm	85.92 mm	Blue, Green, Red	Transmissive	Parallel	24 Bit	LED		0.18 mm	0.19 mm	TFT - Color	177.8 mm	7 in	WVGA	800	480
Displaytech DT070BTFT-HB		154.21 mm	Blue, Green, Red	Transmissive	LVDS		LED				TFT - Color	177.8 mm	7 in		1024	600 pixels	85.92 mm
Displaytech DT070CTFT-TS	154.08 mm	85.92 mm	Blue, Green, Red	Transmissive	Parallel	24 Bit	LED	Resistive	0.18 mm	0.19 mm	TFT - Color	177.8 mm	7 in	WVGA	800	480
Displaytech DT070BTFT-TS		154.21 mm	Blue, Green, Red	Transmissive	LVDS		LED	Resistive			TFT - Color	177.8 mm	7 in		1024	600 pixels	85.92 mm
Displaytech DT070BTFT-HB-TS		154.21 mm	Blue, Green, Red	Transmissive	LVDS		LED	Resistive			TFT - Color	177.8 mm	7 in		1024	600 pixels	85.92 mm
