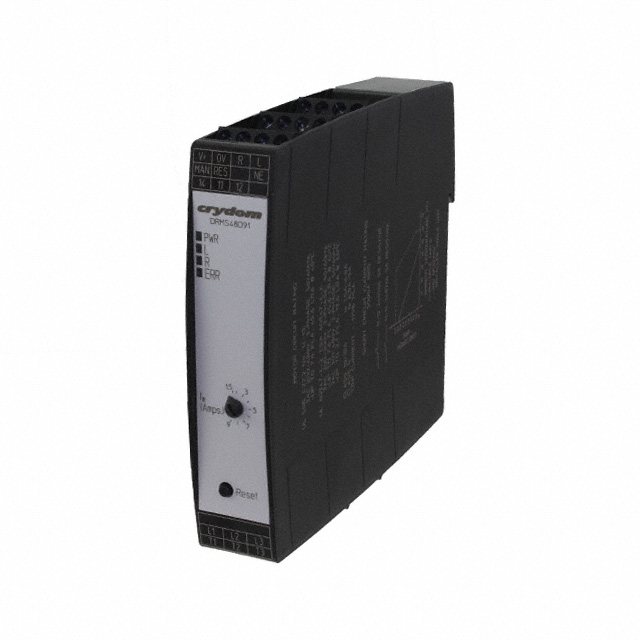

DRMS48D91

Active

Sensata-Crydom

HYBRID MOTOR STARTER DIN

Search across all available documentation for this part.

Active

Sensata-Crydom

HYBRID MOTOR STARTER DIN

Technical Specifications

Parameters and characteristics for this part

Specification	DRMS48D91

Control / Drive Type	Reversible, Motor Starter
Current - Output	9 A
Features	Load Monitor
For Use With/Related Products	DRMS Series
Motor Type	AC Motor
Mounting Type	DIN Rail
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Type	Module
Voltage - Load [Max]	480 V
Voltage - Load [Min]	200 V
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC
Wattage - Load	4000 W

Part	Wattage - Load	Voltage - Load [Min]	Voltage - Load [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Features	Type	Current - Output	For Use With/Related Products	Motor Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Control / Drive Type
Sensata-Crydom DRMS48D91	4000 W	200 V	480 V	30 VDC	10 VDC	Load Monitor	Module	9 A	DRMS Series	AC Motor	60 °C	0 °C	DIN Rail	Motor Starter Reversible

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Motor Starter, Reversible 10 ~ 30VDC Supply 9A 200 ~ 480V Load
