122116-15

Active

Amphenol RF

CONN TNC PLUG STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN TNC PLUG STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	122116-15

Body Finish	Nickel
Body Material	Brass
Cable Group	188, 188A, 316, LMR-100, M17/119-RG174, RG-174
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Cable Group	Contact Termination	Connector Type	Center Contact Material	Impedance	Housing Color	Connector Style	Mounting Type	Body Material	Shield Termination	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Frequency - Max [Max]	Number of Ports	Dielectric Material	Includes	Voltage Rating	Body Finish	Ingress Protection
Amphenol RF 122116RP	188 188A 316 LMR-100 M17/119-RG174 RG-174	Crimp	Female Socket Plug	Phosphor Bronze	50 Ohms	Silver	RP-TNC	Free Hanging (In-Line)	Brass	Crimp	500	-65 ░C	165 °C	Gold	11 GHz	1	Polytetrafluoroethylene (PTFE)	1 Connector 1 Contact 1 Ferrule 1 Sleeve	500 V	Nickel
Amphenol RF 122116-15	188 188A 316 LMR-100 M17/119-RG174 RG-174	Solder	Male Pin Plug	Beryllium Copper Brass	50 Ohms	Silver	TNC	Free Hanging (In-Line)	Brass	Crimp	500	-40 °C	85 °C	Gold	6000 MHz	1	Polytetrafluoroethylene (PTFE)		500 V	Nickel	IP67 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

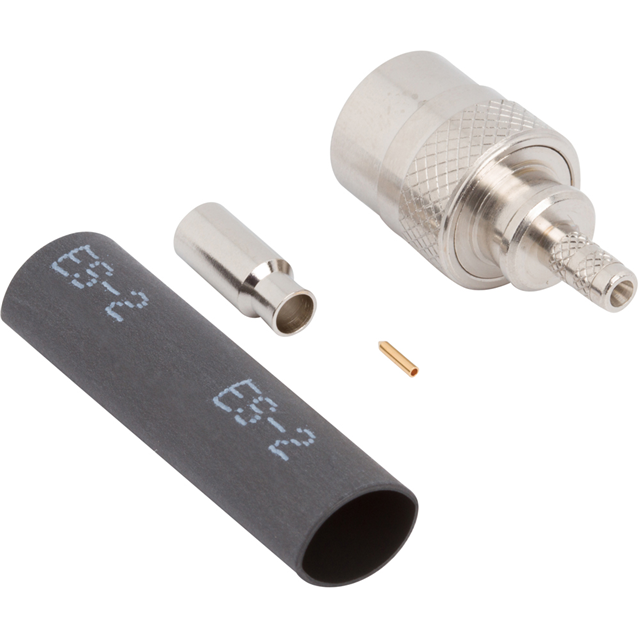

TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
