SLPR14-410P8

Active

BANNER ENGINEERING

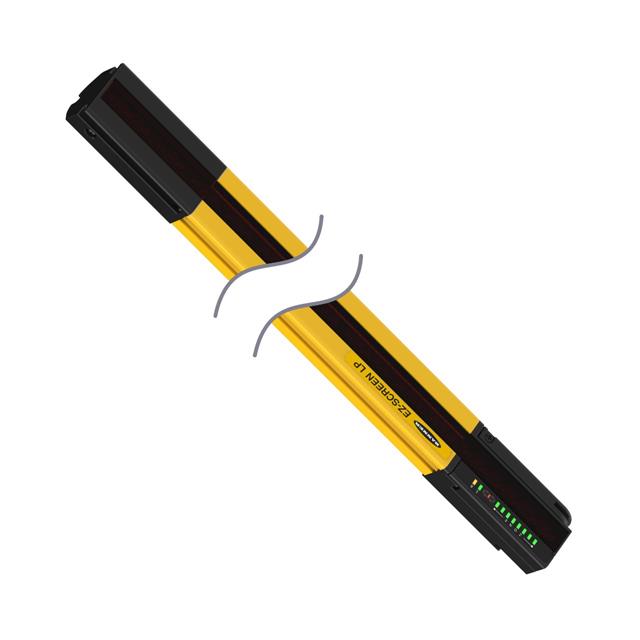

SLPR14-410P8 EZ-SCREEN LOW PROFILE RECEIVER

Search across all available documentation for this part.

Active

BANNER ENGINEERING

SLPR14-410P8 EZ-SCREEN LOW PROFILE RECEIVER

Technical Specifications

Parameters and characteristics for this part

Specification	SLPR14-410P8

Detection Capability	14 mm
Features	Blanking
Ingress Protection	IP65 - Dust Tight, Water Resistant
Number of Beams	41
Operating Range [Max]	7 m
Operating Range [Min]	0.1 m
Protection	Finger
Protective Height [z]	410 mm
Voltage - Supply	24 VDC

Part	Detection Capability	Ingress Protection	Number of Beams	Voltage - Supply	Protective Height [z]	Features	Operating Range [Max]	Operating Range [Min]	Protection
BANNER ENGINEERING SLPR14-410P8	14 mm	IP65 - Dust Tight Water Resistant	41	24 VDC	410 mm	Blanking	7 m	0.1 m	Finger
BANNER ENGINEERING SLPR14-690P8	14 mm	IP65 - Dust Tight Water Resistant	69	24 VDC	690 mm	Blanking	7 m	0.1 m	Finger

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1224.00
Newark	Each	1	$ 1255.00

General part information

Light Curtain 14mm Finger Blanking
