095-668-45069-1

Active

Amphenol RF

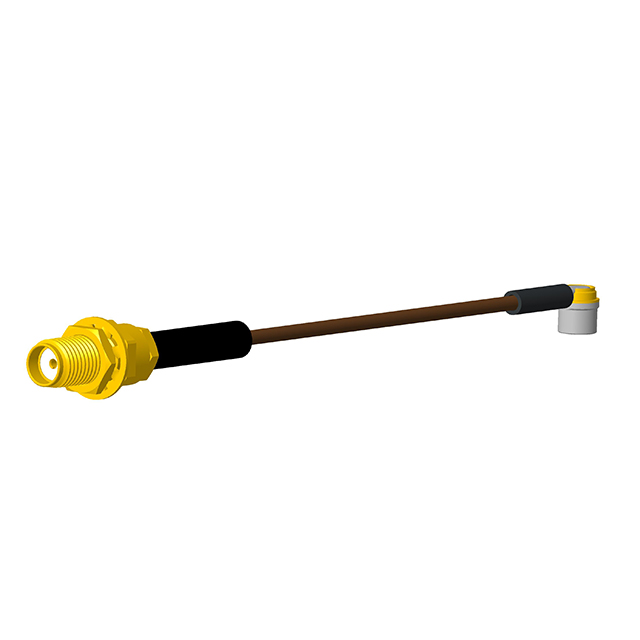

CABLE ASSEMBLY COAXIAL 0.3M SMA TO L TYPE PROBE BAG

Search across all available documentation for this part.

Active

Amphenol RF

CABLE ASSEMBLY COAXIAL 0.3M SMA TO L TYPE PROBE BAG

Technical Specifications

Parameters and characteristics for this part

Specification	095-668-45069-1

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	Probe, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
Cable Impedance	50 Ohms
Cable Type	RG-178
Color	Black
Features	Shielded
Frequency - Max [Max]	3 GHz
Length [x]	300 mm
Length [x]	11.811 in
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overall Impedance	50 Ohms
Style	SMA to Probe

Part	1st Contact Gender	2nd Connector	Frequency - Max [Max]	1st Connector	2nd Connector Mounting Type	Cable Impedance	Overall Impedance	Color	Features	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Length [x]	1st Connector Mounting Type	1st Connector Mounting Feature	Style	Cable Type	Cable Type [diameter]
Amphenol RF 095-668-45069-1	Female	Probe Right Angle	3 GHz	SMA Jack	Free Hanging (In-Line)	50 Ohms	50 Ohms	Black	Shielded	85 °C	-40 °C	300 mm	11.811 in	Panel Mount	Bulkhead - Front Side Nut	SMA to Probe	RG-178
Amphenol RF 095-668-45108	Male	Probe Right Angle	6000 MHz	SMA Plug	Free Hanging (In-Line)		50 Ohms	Black		85 °C	-40 °C	250 mm	9.843 "	Free Hanging (In-Line)		SMA to Probe		1.37 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to Probe RG-178 11.811" (300.00mm)
