PL3455ACP-201

Active

Cinch Connectivity Solutions Trompeter

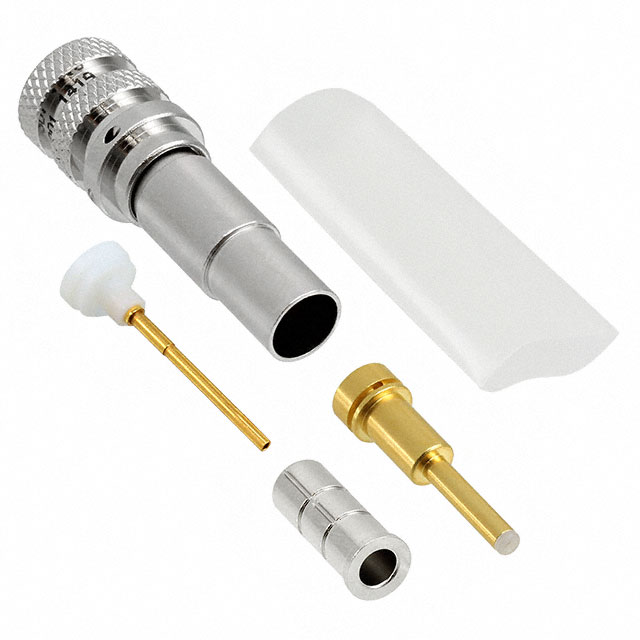

CONN 1553 TWIN PLUG STR CRIMP

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN 1553 TWIN PLUG STR CRIMP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1553, Twinaxial Connector Plug, Female Socket, Male Pin (Concentric) Non-Constant Free Hanging (In-Line) Crimp

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	PL3455ACP-201	PL3455 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	M17/176-00002	Raychem 7528A5314, M17/176-00002, Raychem 10613
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	1553, Twinaxial	1553, Twinaxial
Connector Type	Male Pin (Concentric), Female Socket, Plug	Female Socket, Male Pin, Plug, Male Pin (Concentric)
Contact Termination	Crimp	Crimp
Frequency - Max [Max]	2 MHz	2 MHz
Housing Color	Silver	Silver
Impedance	Non-Constant	Non-Constant
Includes	1 Heat Shrink, 1 Bushing, 1 Connector	1 Heat Shrink, 1 Bushing, 1 Connector
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Crimp	Crimp
Voltage Rating	900 V	900 V

CONN 1553 TWIN PLUG STR CRIMP

Part	Impedance	Housing Color	Mounting Type	Includes	Connector Style	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Shield Termination	Frequency - Max [Max]	Cable Group	Contact Termination	Body Finish	Center Contact Material	Center Contact Plating	Body Material	Number of Ports
Cinch Connectivity Solutions Trompeter PL3455ACS-303	Non-Constant	Silver	Free Hanging (In-Line)	1 Bushing, 1 Connector, 1 Heat Shrink	1553, Twinaxial	900 V	125 °C	-65 ░C	Female Socket, Male Pin, Plug	Crimp	2 MHz	Raychem 7528A5314	Crimp	Nickel	Beryllium Copper	Gold	Brass	1
Cinch Connectivity Solutions Trompeter PL3455ACP-303	Non-Constant	Silver	Free Hanging (In-Line)	1 Bushing, 1 Connector, 1 Heat Shrink	1553, Twinaxial	900 V	125 °C	-65 ░C	Female Socket, Male Pin (Concentric), Plug	Crimp	2 MHz	Raychem 7528A5314	Crimp	Nickel	Beryllium Copper	Gold	Brass	1
Cinch Connectivity Solutions Trompeter PL3455ACP-201	Non-Constant	Silver	Free Hanging (In-Line)	1 Bushing, 1 Connector, 1 Heat Shrink	1553, Twinaxial	900 V	125 °C	-65 ░C	Female Socket, Male Pin (Concentric), Plug	Crimp	2 MHz	M17/176-00002	Crimp	Nickel	Beryllium Copper	Gold	Brass	1
Cinch Connectivity Solutions Trompeter PL3455ACP-222	Non-Constant	Silver	Free Hanging (In-Line)	1 Bushing, 1 Connector, 1 Heat Shrink	1553, Twinaxial	900 V	125 °C	-65 ░C	Female Socket, Male Pin (Concentric), Plug	Crimp	2 MHz	Raychem 10613	Crimp	Nickel	Beryllium Copper	Gold	Brass	1
