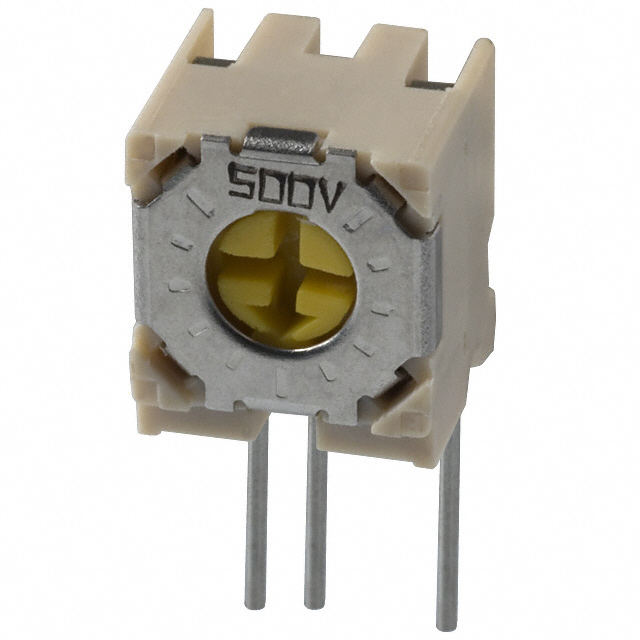

PVC6G205C01B00

Obsolete

Bourns Inc.

TRIMMER 2M OHM 0.5W PC PIN SIDE

Search across all available documentation for this part.

Obsolete

Bourns Inc.

TRIMMER 2M OHM 0.5W PC PIN SIDE

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Temperature Coefficient	Tolerance	Resistance	Adjustment Type	Resistive Material	Number of Turns	Power (Watts)	Power (Watts)	Mounting Type
Bourns Inc. PVC6G204C01B00	PC Pins	6.9 mm	0.272 "	0.315 "	8 mm	100 ppm/°C	10 %	200000 Ohms	Side Adjustment	Ceramic	1	0.5 W	0.5 W	Through Hole
Bourns Inc. PVC6G504C01B00	PC Pins	6.9 mm	0.272 "	0.315 "	8 mm	100 ppm/°C	10 %		Side Adjustment	Ceramic	1	0.5 W	0.5 W	Through Hole
Bourns Inc. PVC6G101A01B00	PC Pins	6.9 mm	0.272 "	0.315 "	8 mm	100 ppm/°C	10 %	100 Ohms	Side Adjustment	Ceramic	1	0.5 W	0.5 W	Through Hole
Bourns Inc. PVC6G102C01B00	PC Pins	6.9 mm	0.272 "	0.315 "	8 mm	100 ppm/°C	10 %	1000 Ohms	Side Adjustment	Ceramic	1	0.5 W	0.5 W	Through Hole
Bourns Inc. PVC6G204A01B00	PC Pins	6.9 mm	0.272 "	0.315 "	8 mm	100 ppm/°C	10 %	200000 Ohms	Side Adjustment	Ceramic	1	0.5 W	0.5 W	Through Hole
Bourns Inc. PVC6G254C01B00	PC Pins	6.9 mm	0.272 "	0.315 "	8 mm	100 ppm/°C	10 %	250 kOhms	Side Adjustment	Ceramic	1	0.5 W	0.5 W	Through Hole
Bourns Inc. PVC6G103A01B00	PC Pins	6.9 mm	0.272 "	0.315 "	8 mm	100 ppm/°C	10 %	10000 Ohms	Side Adjustment	Ceramic	1	0.5 W	0.5 W	Through Hole
Bourns Inc. PVC6G504A01B00	PC Pins	6.9 mm	0.272 "	0.315 "	8 mm	100 ppm/°C	10 %		Side Adjustment	Ceramic	1	0.5 W	0.5 W	Through Hole
Bourns Inc. PVC6G205C01B00	PC Pins	6.9 mm	0.272 "	0.315 "	8 mm	100 ppm/°C	10 %	2 MOhms	Side Adjustment	Ceramic	1	0.5 W	0.5 W	Through Hole
Bourns Inc. PVC6G503A01B00	PC Pins	6.9 mm	0.272 "	0.315 "	8 mm	100 ppm/°C	10 %	50 kOhms	Side Adjustment	Ceramic	1	0.5 W	0.5 W	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2 MOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Ceramic 1.0 Turn Side Adjustment
