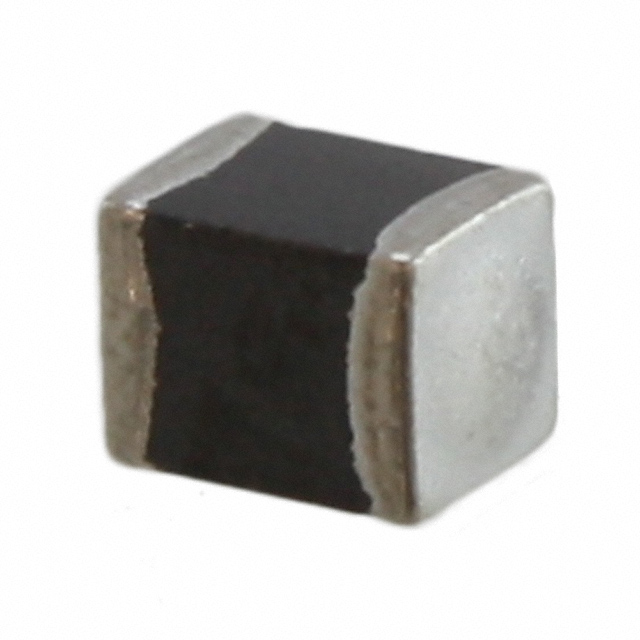

Z1210C202BPWZT

Obsolete

KEMET

FERRITE BEAD 2K OHM 1210 1LN

Search across all available documentation for this part.

Obsolete

KEMET

FERRITE BEAD 2K OHM 1210 1LN

Technical Specifications

Parameters and characteristics for this part

FERRITE BEAD 2K OHM 1210 1LN

Part	Filter Type	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Impedance @ Frequency	Number of Lines	DC Resistance (DCR) (Max) [Max]	Package / Case	Package / Case	Height (Max)	Height (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Max) [Max]
KEMET Z1210C202BPWZT	Power Line	Surface Mount	3.2 mm	2.5 mm	0.126 in	0.098 in	2 kOhms	1	130 mOhm	1210	3225 Metric	2.8 mm	0.11 in	125 °C	-40 °C	1.2 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 kOhms @ 100 MHz 1 Power Line Ferrite Bead 1210 (3225 Metric) 1.2A 130mOhm
