325-017-520-107

Active

EDAC Inc.

CONN EDGE SINGLE FML 17POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

325-017-520-107

Active

EDAC Inc.

CONN EDGE SINGLE FML 17POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	325-017-520-107

Card Thickness	3.18 mm
Card Thickness	0.125 in
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

325-017 Series

Part	Contact Material	Number of Rows	Gender	Contact Finish Thickness	Contact Finish Thickness	Termination Rows	Material - Insulation	Read Out	Pitch [x]	Pitch [x]	Card Type	Contact Type	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Card Thickness	Card Thickness	Flange Feature	Color	Contact Finish	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 325-017-500-108	Copper Alloy	1	Female	10 Áin	0.25 Ám	1	Diallyl Phthalate (DAP)	Single	2.54 mm	0.1 in	Non Specified - Single Edge	Cantilever	Solder Eyelet(s)	125 °C	-65 ░C	Through Hole	3.18 mm	0.125 in	4-40 Flush Mount Threaded Insert Top Opening	Green	Gold
EDAC Inc. 325-017-500-101	Copper Alloy	1	Female	10 Áin	0.25 Ám	1	Diallyl Phthalate (DAP)	Single	2.54 mm	0.1 in	Non Specified - Single Edge	Cantilever	Solder Eyelet(s)	125 °C	-65 ░C	Through Hole	3.18 mm	0.125 in		Green	Gold
EDAC Inc. 325-017-540-101	Copper Alloy	1	Female	10 Áin	0.25 Ám	1	Diallyl Phthalate (DAP)	Single	2.54 mm	0.1 in	Non Specified - Single Edge	Cantilever	Wire Wrap	125 °C	-65 ░C	Through Hole	3.18 mm	0.125 in		Green	Gold
EDAC Inc. 325-017-520-107	Copper Alloy	1	Female	10 Áin	0.25 Ám	1	Diallyl Phthalate (DAP)	Single	2.54 mm	0.1 in	Non Specified - Single Edge	Cantilever	Solder	125 °C	-65 ░C	Through Hole	3.18 mm	0.125 in	Flush Mount M3 Threaded Insert Top Opening	Green	Gold
EDAC Inc. 325-017-520-101	Copper Alloy	1	Female	10 Áin	0.25 Ám	1	Diallyl Phthalate (DAP)	Single	2.54 mm	0.1 in	Non Specified - Single Edge	Cantilever	Solder	125 °C	-65 ░C	Through Hole	3.18 mm	0.125 in		Green	Gold
EDAC Inc. 325-017-540-107	Copper Alloy	1	Female	10 Áin	0.25 Ám	1	Diallyl Phthalate (DAP)	Single	2.54 mm	0.1 in	Non Specified - Single Edge	Cantilever	Wire Wrap	125 °C	-65 ░C	Through Hole	3.18 mm	0.125 in	Flush Mount M3 Threaded Insert Top Opening	Green	Gold
EDAC Inc. 325-017-540-109	Copper Alloy	1	Female	10 Áin	0.25 Ám	1	Diallyl Phthalate (DAP)	Single	2.54 mm	0.1 in	Non Specified - Single Edge	Cantilever	Wire Wrap	125 °C	-65 ░C	Through Hole	3.18 mm	0.125 in	Flush Mount Top Opening Unthreaded	Green	Gold	0.16 in	4.06 mm
EDAC Inc. 325-017-500-107	Copper Alloy	1	Female	10 Áin	0.25 Ám	1	Diallyl Phthalate (DAP)	Single	2.54 mm	0.1 in	Non Specified - Single Edge	Cantilever	Solder Eyelet(s)	125 °C	-65 ░C	Through Hole	3.18 mm	0.125 in	Flush Mount M3 Threaded Insert Top Opening	Green	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 12.94

Description

General part information

325-017 Series

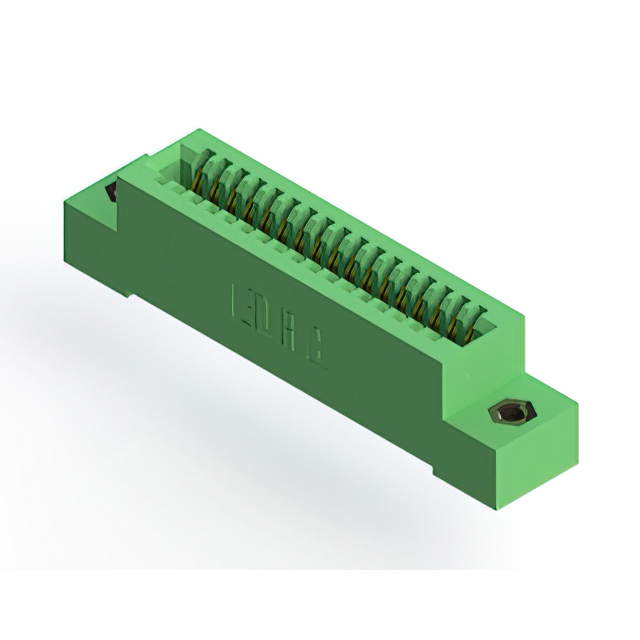

17 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
