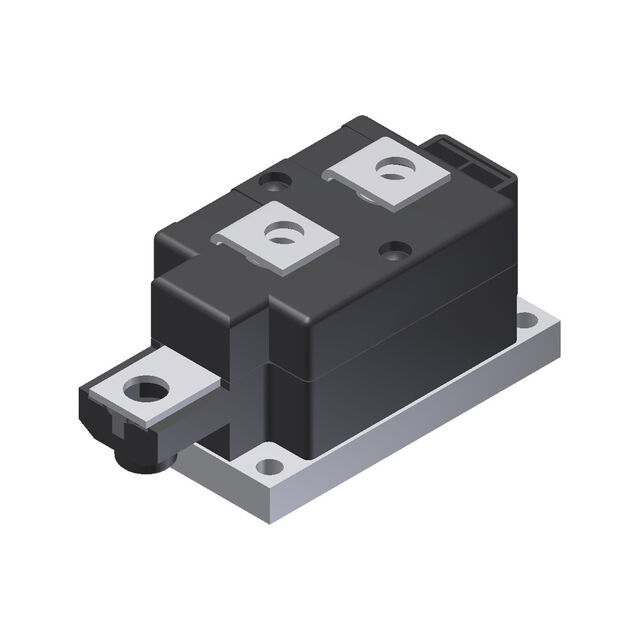

MDMA380P1600KC

Active

IXYS

DIODE MOD GP 1600V 380A MOD

Search across all available documentation for this part.

Active

IXYS

DIODE MOD GP 1600V 380A MOD

Technical Specifications

Parameters and characteristics for this part

Specification	MDMA380P1600KC

Current - Average Rectified (Io) (per Diode)	380 A
Current - Reverse Leakage @ Vr	500 µA
Diode Configuration	1 Pair Series Connection
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	Module
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	Module
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.07 V

Part	Speed	Speed	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Current - Average Rectified (Io) (per Diode)	Mounting Type	Current - Reverse Leakage @ Vr	Technology	Diode Configuration	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case
IXYS MDMA380P1600KC	Standard Recovery >500ns	200 mA	1.07 V	Module	380 A	Chassis Mount	500 µA	Standard	1 Pair Series Connection	150 °C	-40 °C	Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode Array 1 Pair Series Connection 1600 V 380A Chassis Mount Module
