2902956

Active

Phoenix Contact

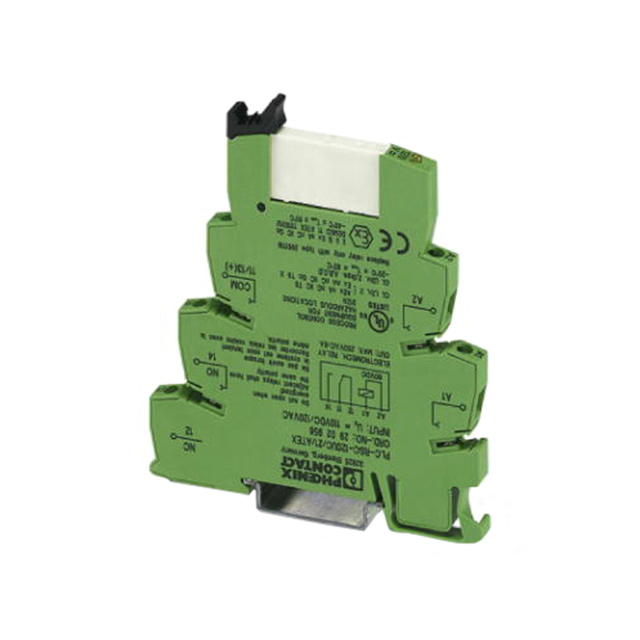

RELAY MODULE - PLC-RSC-120UC/21 ATEX

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY MODULE - PLC-RSC-120UC/21 ATEX

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2902956	29029 Series

Approval Agency	UKCA, CE	UKCA, CE
Coil Current	3.5 mA	3.5 - 9 mA
Coil Resistance	34.29 kOhms	2.667 - 34.29 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	120 VAC, 120 VDC	24 - 120 VAC
Contact Form	SPDT (1 Form C)	SPDT (1 Form C)
Contact Material	Silver Tin Oxide (AgSnO)	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	6 A	6 A
Features	Lighted Indicator, Socket Included	Lighted Indicator, Socket Included
Mounting Type	DIN Rail	DIN Rail
Operate Time	6 ms	5 - 6 ms
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-20 C	-20 C
Relay Type	General Purpose	General Purpose
Release Time	15 ms	8 - 15 ms
Switching Voltage	250 VAC, 250 VDC	250 VAC
Termination Style	Screw Terminal	Screw Terminal

RELAY MODULE - PLC-RSC-120UC/21 ATEX

Part	Switching Voltage	Coil Resistance	Coil Voltage	Coil Type	Contact Material	Approval Agency	Features	Operate Time	Contact Form	Coil Current	Operating Temperature [Min]	Operating Temperature [Max]	Release Time	Mounting Type	Contact Rating (Current)	Termination Style	Relay Type
Phoenix Contact 2902956	250 VAC, 250 VDC	34.29 kOhms	120 VAC, 120 VDC	Non Latching	Silver Tin Oxide (AgSnO)	CE, UKCA	Lighted Indicator, Socket Included	6 ms	SPDT (1 Form C)	3.5 mA	-20 C	60 °C	15 ms	DIN Rail	6 A	Screw Terminal	General Purpose
Phoenix Contact 2902955	250 VAC, 250 VDC	2.667 kOhms	24 VDC	Non Latching	Silver Tin Oxide (AgSnO)	CE, UKCA	Lighted Indicator, Socket Included	5 ms	SPDT (1 Form C)	9 mA	-20 C	60 °C	8 ms	DIN Rail	6 A	Screw Terminal	General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 32.92

General part information

General Purpose Relay SPDT (1 Form C) 120VAC/DC Coil DIN Rail
