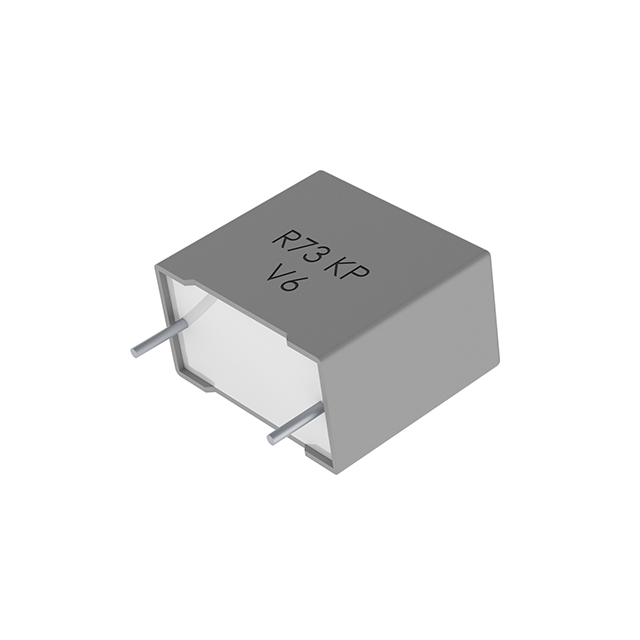

R73UN1470SE00J

Active

KEMET

CAP FILM 4700PF 5% 2KVDC RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP FILM 4700PF 5% 2KVDC RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	R73UN1470SE00J

Applications	DC Filtering, DC Link, High Pulse, High Frequency, Automotive, DV/DT, Switching
Capacitance	4700 pF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max]	16.1 mm
Height - Seated (Max) [Max]	0.634 in
Lead Spacing	22.5 mm
Lead Spacing	0.886 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Ratings	AEC-Q200
Size / Dimension [x]	1.043 in
Size / Dimension [x]	26.5 mm
Size / Dimension [y]	7 mm
Size / Dimension [y]	0.276 in
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	500 V
Voltage Rating - DC	2 kV
Voltage Rating - DC	2 kVDC

Part	Capacitance	Voltage Rating - AC	Tolerance	Mounting Type	Package / Case	Termination	Voltage Rating - DC	Voltage Rating - DC	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ratings	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Dielectric Material	Lead Spacing	Lead Spacing	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET R73UN1470SE00J	4700 pF	500 V	5 %	Through Hole	Radial	PC Pins	2 kV	2 kVDC	16.1 mm	0.634 in	AEC-Q200	7 mm	0.276 in	1.043 in	26.5 mm	Metallized Polypropylene (PP)	22.5 mm	0.886 in	105 ░C	-55 °C	Automotive DC Filtering DC Link DV/DT High Frequency High Pulse Switching
KEMET R73UN21004000J	10000 pF	500 V	5 %	Through Hole	Radial	PC Pins	2 kV	2 kVDC			AEC-Q200	10 mm	0.394 in	1.043 in	26.5 mm	Metallized Polypropylene (PP)	22.5 mm	0.886 in	105 ░C	-55 °C	Automotive DC Filtering DC Link DV/DT High Frequency High Pulse Switching	18.6 mm	0.732 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4700 pF Film Capacitor 500V 2000V (2kV) Polypropylene (PP), Metallized Radial
