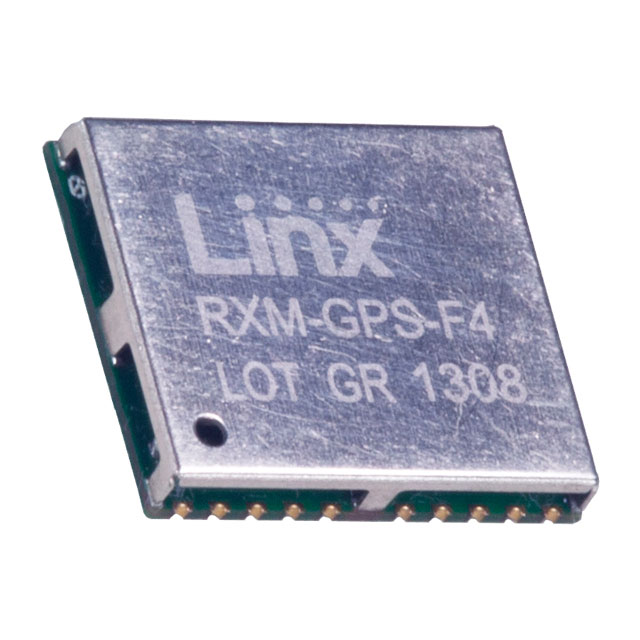

RXM-GPS-F4-T

Obsolete

TE Connectivity Linx

RF RCVR GPS 1575.42MHZ MODULE

Search across all available documentation for this part.

Obsolete

TE Connectivity Linx

RF RCVR GPS 1575.42MHZ MODULE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

F4 RF Receiver GPS 1575.42MHz -159.5dBm PCB, Surface Mount Module

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	RXM-GPS-F4-T	RXM-GPS Series

Antenna Connector	PCB, Surface Mount	PCB, Surface Mount
Applications	Fleet Management, Navigation, Location, Tracking	Fleet Management, Navigation, Location, Tracking
Current - Receiving	27.5 mA	12 - 33 mA
Data Interface	UART	UART
Frequency	1575.42 MHz	1575.42 MHz
Modulation or Protocol	GPS	GPS
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-40 - -30 °C
Package / Case	20-SMD Module	Module, 20-SMD Module
Sensitivity	-159.5 dBm	-161 - -159.5 dB
Supplier Device Package	Module	Module
Voltage - Supply [Max]	1.89 V	1.89 - 4.3 V
Voltage - Supply [Min]	1.71 V	1.71 - 3 V

RF RCVR GPS 1575.42MHZ MODULE

Part	Sensitivity	Applications	Data Interface	Current - Receiving	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Frequency	Modulation or Protocol	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Antenna Connector
TE Connectivity Linx RXM-GPS-RM-T	-161 dB	Fleet Management, Location, Navigation, Tracking	UART	12 mA	Module	4.3 V	3 V	1575.42 MHz	GPS	Surface Mount	Module
TE Connectivity Linx RXM-GPS-FM-T	-161 dB	Fleet Management, Location, Navigation, Tracking	UART	12 mA	Module	4.3 V	3 V	1575.42 MHz	GPS	Surface Mount	Module
TE Connectivity Linx RXM-GPS-R4-T	-160 dBm	Fleet Management, Location, Navigation, Tracking	UART	33 mA	Module	3.6 V	3 V	1575.42 MHz	GPS	Surface Mount	20-SMD Module	85 °C	-40 °C	PCB, Surface Mount
TE Connectivity Linx RXM-GPS-F4-T	-159.5 dBm	Fleet Management, Location, Navigation, Tracking	UART	27.5 mA	Module	1.89 V	1.71 V	1575.42 MHz	GPS	Surface Mount	20-SMD Module	85 °C	-30 ░C	PCB, Surface Mount
