XM2C-0942-132L

Obsolete

Omron Electronics Inc-EMC Div

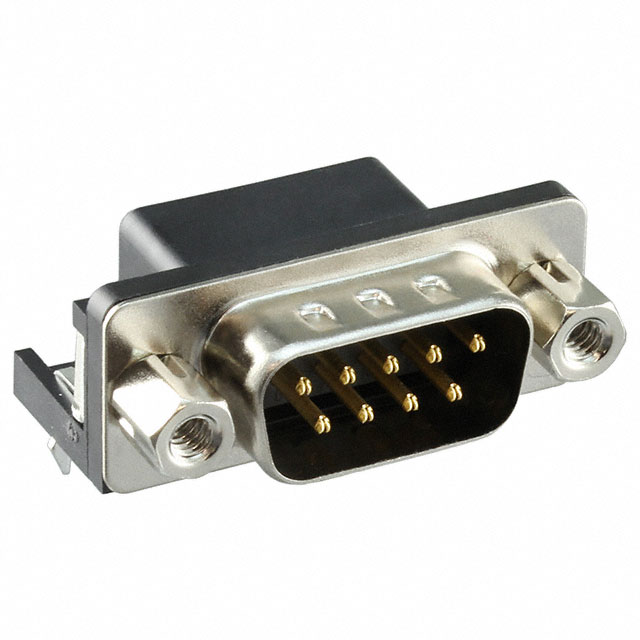

CONN D-SUB PLUG 9POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet

XM2C-0942-132L

Obsolete

Omron Electronics Inc-EMC Div

CONN D-SUB PLUG 9POS R/A SLDR

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

XM2C Series

9 Position D-Sub Plug, Male Pins Connector

Documents

Technical documentation and resources

How to Read Date Codes

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XM2C-0942-132L	XM2C Series

	-	-
Color	Black	Black
Connector Style	D-Sub	D-Sub
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish	Gold	Gold
Contact Finish Thickness	Flash	Flash
Contact Material	Brass	Brass
Contact Type	Signal	Signal
Current Rating (Amps)	3 A	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Features	Board Lock, Shielded, Grounding Indents	Grounding Indents, Shielded, Board Lock
Flange Feature	Female Screwlock (4-40), Mating Side	Housing/Shell (Unthreaded), Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	9	9 - 15
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-25 °C	-25 °C
Shell Material, Finish	Nickel Plated, Steel	Nickel Plated, Steel
Shell Size, Connector Layout	-	2
Shell Size, Connector Layout [custom]	DE, E	DE, E
Shell Size, Connector Layout [custom]	1	1
Termination	Solder	Solder
Voltage Rating	300 VDC	300 VDC

XM2C Series

CONN D-SUB PLUG 9POS R/A SLDR

Part	Contact Finish	Contact Material	Shell Material, Finish	Contact Finish Thickness	Flange Feature	Number of Rows	Connector Style	Voltage Rating	Contact Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Material Flammability Rating	Features	Mounting Type	Termination	Dielectric Material	Color	Current Rating (Amps)	Number of Positions	Shell Size, Connector Layout
Omron Electronics Inc-EMC Div XM2C-0942-502L	Gold	Brass	Nickel Plated, Steel	Flash	Housing/Shell (Unthreaded)	2	D-Sub	300 VDC	Signal	DE, E	1	-25 °C	105 ░C	Male Pins, Plug	UL94 V-0	Grounding Indents, Shielded	Through Hole, Right Angle	Solder	Polybutylene Terephthalate (PBT), Glass Filled	Black	3 A	9
Omron Electronics Inc-EMC Div XM2C-1542-112L	Gold	Brass	Nickel Plated, Steel	Flash		2	D-Sub	300 VDC	Signal			-25 °C	105 ░C	Male Pins, Plug	UL94 V-0	Board Lock, Grounding Indents, Shielded	Through Hole, Right Angle	Solder	Polybutylene Terephthalate (PBT), Glass Filled	Black	3 A	15	2
Omron Electronics Inc-EMC Div XM2C-0942-132L	Gold	Brass	Nickel Plated, Steel	Flash	Female Screwlock (4-40), Mating Side	2	D-Sub	300 VDC	Signal	DE, E	1	-25 °C	105 ░C	Male Pins, Plug	UL94 V-0	Board Lock, Grounding Indents, Shielded	Through Hole, Right Angle	Solder	Polybutylene Terephthalate (PBT), Glass Filled	Black	3 A	9
Omron Electronics Inc-EMC Div XM2C-1542-502L
Omron Electronics Inc-EMC Div XM2C-0942-112L	Gold	Brass	Nickel Plated, Steel	Flash		2	D-Sub	300 VDC	Signal	DE, E	1	-25 °C	105 ░C	Male Pins, Plug	UL94 V-0	Board Lock, Grounding Indents, Shielded	Through Hole, Right Angle	Solder	Polybutylene Terephthalate (PBT), Glass Filled	Black	3 A	9
