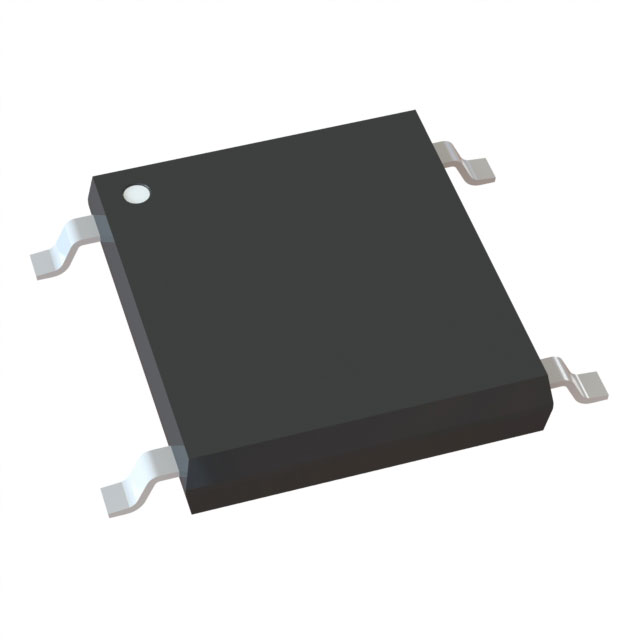

ABS10_HF
ActiveDiodes Inc
1A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
Deep-Dive with AI
Search across all available documentation for this part.
ABS10_HF
ActiveDiodes Inc
1A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ABS10_HF |
|---|---|
| Current - Average Rectified (Io) | 1 A |
| Current - Reverse Leakage @ Vr | 1 µA |
| Diode Type | Single Phase |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | ABS |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V |
| Voltage - Peak Reverse (Max) [Max] | 1000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 5000 | $ 0.03 | |
| 10000 | $ 0.03 | |||
| 15000 | $ 0.03 | |||
| 25000 | $ 0.03 | |||
| 35000 | $ 0.02 | |||
| 50000 | $ 0.02 | |||
| 125000 | $ 0.02 | |||
| 250000 | $ 0.02 | |||
| 500000 | $ 0.02 | |||
Description
General part information
ABS10(LS) Series
1A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
