6139B8 0091000

Active

Belden Inc.

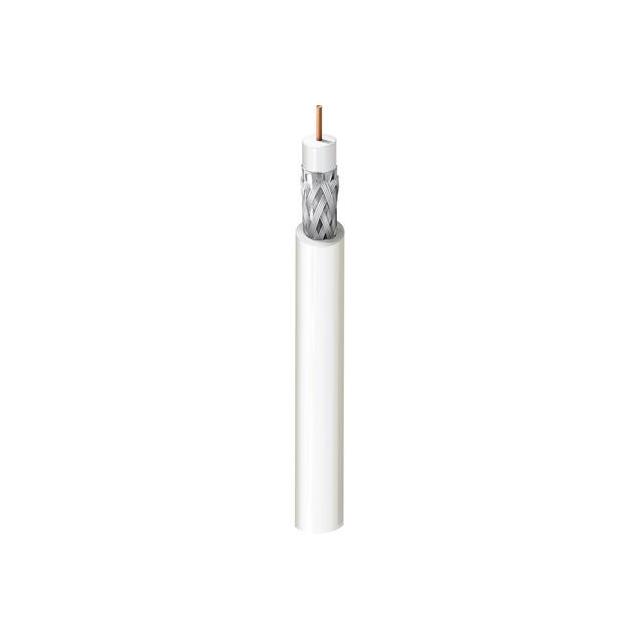

RG-11/U PLENUM COAX

Search across all available documentation for this part.

Active

Belden Inc.

RG-11/U PLENUM COAX

Technical Specifications

Parameters and characteristics for this part

Specification	6139B8 0091000

Cable Group	RG-11
Cable Type	Coaxial - Plenum
Conductor Material	Copper, Bare
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.274 in
Dielectric Diameter [diameter]	6.96 mm
Dielectric Material	Foam Fluorinated Ethylene Propylene (FFEP)
Impedance	75 Ohms
Jacket (Insulation) Diameter [diameter]	0.348 in
Jacket (Insulation) Diameter [diameter]	8.84 mm
Jacket (Insulation) Material	Polyvinylidene Fluoride (PVDF)
Length	304.8 m
Length	1000 ft
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-20 C
Shield Coverage	60%, 100%
Shield Material	Aluminum
Shield Type	Foil, Braid
VoP, Velocity of Propagation	84
Wire Gauge	13.5 AWG

Part	Impedance	Jacket (Insulation) Material	Cable Group	Shield Coverage	Shield Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Cable Type	Length	Length	VoP, Velocity of Propagation	Dielectric Material	Conductor Strand	Conductor Material	Wire Gauge	Shield Type	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
Belden Inc. 6139B8 0091000	75 Ohms	Polyvinylidene Fluoride (PVDF)	RG-11	100% 60%	Aluminum	0.274 in	6.96 mm	Coaxial - Plenum	304.8 m	1000 ft	84	Foam Fluorinated Ethylene Propylene (FFEP)	Solid	Copper Bare	13.5 AWG	Braid Foil	150 °C	-20 C	0.348 in	8.84 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 2.19

General part information

Coaxial - Plenum Cable 14 AWG RG-11 1000.0' (304.80m) 75 Ohms
