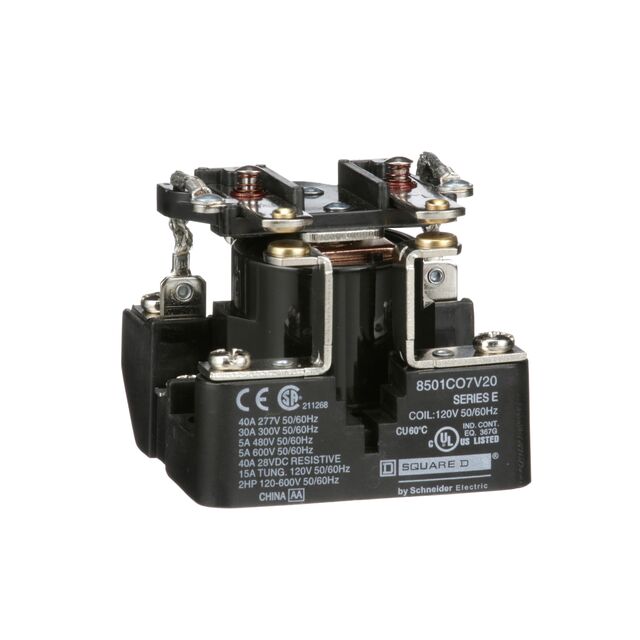

8501CDPST

Active

SQUARE D BY SCHNEIDER ELECTRIC

OPEN POWER RELAY 120VAC, DPST-NO

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

OPEN POWER RELAY 120VAC, DPST-NO

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Contact Form	Approval Agency	Coil Type	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Switching Voltage	Contact Rating (Current)	Coil Voltage	Load - Max Switching [Max]	Relay Type
SQUARE D BY SCHNEIDER ELECTRIC 8501CDO21V53	Screw Terminal	SPST-NO (1 Form A)	CE CSA UL	Non Latching	Chassis Mount	-30 ░C	60 °C	500 VDC	20 A	24 VDC	10000 VA	General Purpose
SQUARE D BY SCHNEIDER ELECTRIC 8501CDO15V53	Screw Terminal	DPST-NO/NC	CE CSA UL	Non Latching	Chassis Mount	-30 ░C	60 °C	600 VAC	30 A	24 VDC		General Purpose
SQUARE D BY SCHNEIDER ELECTRIC 8501CDPST	Screw Terminal	DPST-NO (2 Form A)		Non Latching	Chassis Mount	-30 ░C	50 °C	600 VAC	30 A	120 VAC		General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay DPST-NO (2 Form A) 120VAC Coil Chassis Mount
