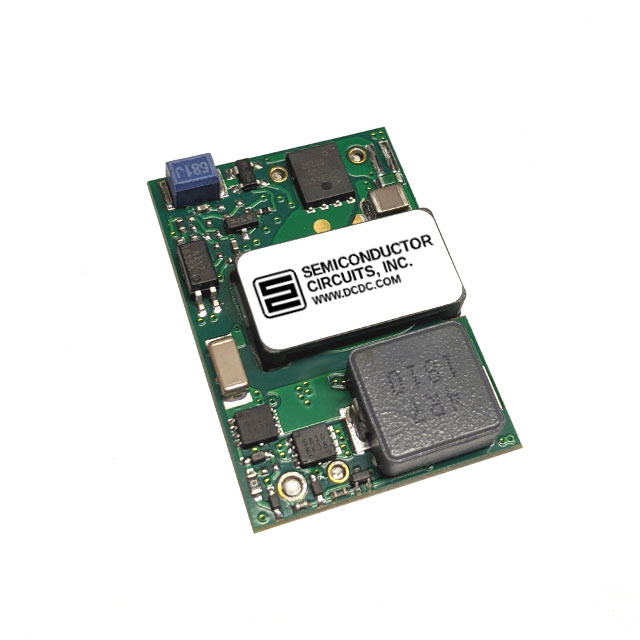

CPT15A48NS

Active

Semiconductor Circuits, Inc.

DC DC CONVERTER 5V 75W

Search across all available documentation for this part.

Active

Semiconductor Circuits, Inc.

DC DC CONVERTER 5V 75W

Technical Specifications

Parameters and characteristics for this part

Specification	CPT15A48NS

Applications	ITE (Commercial)
Approval Agency	CSA, TUV, UL
Control Features	Active Low, Enable
Current - Output (Max) [Max]	15 A
Efficiency	93 %
Features	Remote On/Off, Adjustable Output, Remote Sense
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Sixteenth Brick
Power (Watts)	75 W
Size / Dimension [x]	1.3 "
Size / Dimension [x]	33 mm
Size / Dimension [y]	22.9 mm
Size / Dimension [y]	0.9 "
Size / Dimension [z]	0.37 in
Size / Dimension [z]	9.5 mm
Supplier Device Package	Sixteenth Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	5 V

DC DC CONVERTER 5V 75W

Part	Power (Watts)	Approval Agency	Supplier Device Package	Voltage - Isolation	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Package / Case	Number of Outputs	Type	Efficiency	Applications	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Control Features	Mounting Type	Features	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input (Min) [Min]
Semiconductor Circuits, Inc. CPT15A48NS	75 W	CSA, TUV, UL	Sixteenth Brick	2250 VDC	15 A	75 V	Sixteenth Brick	1	Isolated Module	93 %	ITE (Commercial)	5 V	85 °C	-40 °C	Active Low, Enable	Surface Mount	Adjustable Output, Remote On/Off, Remote Sense	0.37 in	1.3 "	9.5 mm	22.9 mm	33 mm	0.9 "	36 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 5V 15A 36V - 75V Input
