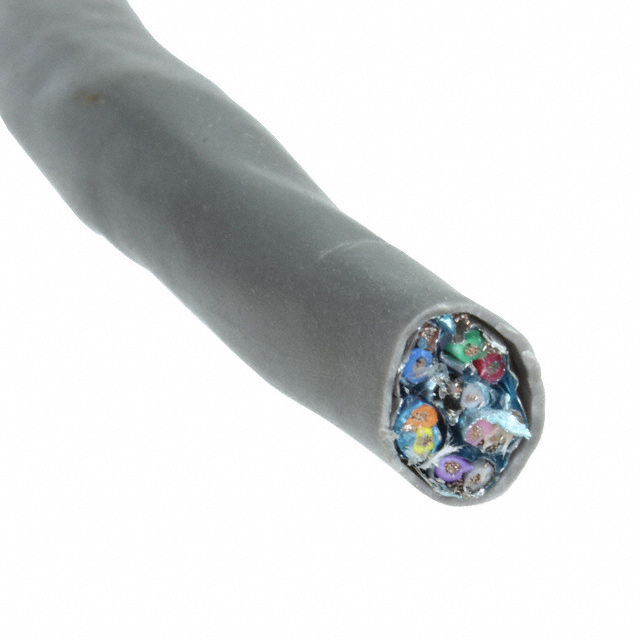

8778MN 008100

Active

Belden Inc.

MULTI-PAIR 12COND 22AWG GRAY

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 12COND 22AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	8778MN 008100

Cable Type	Multi-Pair
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand	34 AWG
Conductor Strand [custom]	19 Strands
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	8.05 mm
Jacket (Insulation) Diameter [diameter]	0.317 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.406 mm
Jacket (Insulation) Thickness	0.016 in
Jacket Color	Gray
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	12
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Wire Gauge	22 AWG

Part	Conductor Material	Jacket (Insulation) Material	Shield Coverage	Conductor Insulation	Cable Type	Shield Material	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand	Usage	Jacket Color	Length	Length	Ratings	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Voltage	Number of Conductors	Features	Length [x]	Length [x]
Belden Inc. 8778MN 0041000	Copper Tinned	Poly-Vinyl Chloride (PVC)	100 %	Polypropylene (PP)	Multi-Pair	Aluminum	22 AWG	-20 C	80 C	19 Strands	34 AWG	Audio Control Instrumentation	Yellow	1000 ft	304.8 m	UL Style 2937	0.406 mm	0.016 in	8.05 mm	0.317 in	Foil	300 V	12	Drain Wire
Belden Inc. 8778MN 004100	Copper Tinned	Poly-Vinyl Chloride (PVC)	100 %	Polypropylene (PP)	Multi-Pair	Aluminum	22 AWG	-20 C	80 C	19 Strands	34 AWG	Audio Control Instrumentation	Yellow			UL Style 2937	0.406 mm	0.016 in	8.05 mm	0.317 in	Foil	300 V	12	Drain Wire	30.5 m	100 ft
Belden Inc. 8778MN 0061000	Copper Tinned	Poly-Vinyl Chloride (PVC)	100 %	Polypropylene (PP)	Multi-Pair	Aluminum	22 AWG	-20 C	80 C	19 Strands	34 AWG	Audio Control Instrumentation	Blue	1000 ft	304.8 m	UL Style 2937	0.406 mm	0.016 in	8.05 mm	0.317 in	Foil	300 V	12	Drain Wire
Belden Inc. 8778MN 008100	Copper Tinned	Poly-Vinyl Chloride (PVC)	100 %	Polypropylene (PP)	Multi-Pair	Aluminum	22 AWG	-20 C	80 C	19 Strands	34 AWG	Audio Control Instrumentation	Gray				0.406 mm	0.016 in	8.05 mm	0.317 in	Foil		12	Drain Wire	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 (6 Pair Twisted) Conductor Multi-Pair Cable Gray 22 AWG Foil 100.0' (30.5m)
