A7NNB-2510M
ActiveTE Connectivity AMP Connectors
CABLE D-SUB-AMN25B/AE25M/AMN25B
Deep-Dive with AI
Search across all available documentation for this part.
A7NNB-2510M
ActiveTE Connectivity AMP Connectors
CABLE D-SUB-AMN25B/AE25M/AMN25B
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A7NNB-2510M | A7NNB Series |
|---|---|---|
| 1st Connector | Plug, Male Pins | Plug, Male Pins |
| 2nd Connector | Plug, Male Pins | Plug, Male Pins |
| Color | Ribbon, Multiple | Ribbon, Multiple |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Length | 10 ft | 6 - 10 ft |
| Length | 3.05 m | 1.83 - 3.05 m |
| Number of Positions | - | 9 - 15 |
| Shielding | Unshielded | Unshielded |
| Type | DB25 | DB9, DB25, DB15 |
| Usage | Patch | Patch |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 51.24 | |
| 10 | $ 42.47 | |||
| 25 | $ 39.43 | |||
| 50 | $ 37.28 | |||
| 100 | $ 35.26 | |||
| 250 | $ 33.26 | |||
A7NNB Series
CABLE D-SUB-AMN09B/AE09M/AMN09B
| Part | Shielding | Type | Color | Number of Positions | 1st Connector | 2nd Connector | Usage | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A7NNB-0906M | Unshielded | DB9 | Multiple, Ribbon | 9 | Plug, Male Pins | Plug, Male Pins | Patch | Gold | 0.76 Ám | 30 Áin | 6 ft | 1.83 m |
TE Connectivity AMP Connectors A7NNB-2510M | Unshielded | DB25 | Multiple, Ribbon | Plug, Male Pins | Plug, Male Pins | Patch | Gold | 0.76 Ám | 30 Áin | 10 ft | 3.05 m | |
TE Connectivity AMP Connectors A7NNB-1506G | Unshielded | DB15 | 15 | Plug, Male Pins | Plug, Male Pins | Patch | Gold | 0.76 Ám | 30 Áin | 6 ft | 1.83 m | |
TE Connectivity AMP Connectors A7NNB-2510G | Unshielded | DB25 | Plug, Male Pins | Plug, Male Pins | Patch | Gold | 0.76 Ám | 30 Áin | 10 ft | 3.05 m | ||
TE Connectivity AMP Connectors A7NNB-1506M | Unshielded | DB15 | Multiple, Ribbon | 15 | Plug, Male Pins | Plug, Male Pins | Patch | Gold | 0.76 Ám | 30 Áin | 6 ft | 1.83 m |
TE Connectivity AMP Connectors A7NNB-1510M | Unshielded | DB15 | Multiple, Ribbon | 15 | Plug, Male Pins | Plug, Male Pins | Patch | Gold | 0.76 Ám | 30 Áin | 10 ft | 3.05 m |
TE Connectivity AMP Connectors A7NNB-2506M | Unshielded | DB25 | Multiple, Ribbon | Plug, Male Pins | Plug, Male Pins | Patch | Gold | 0.76 Ám | 30 Áin | 6 ft | 1.83 m |
Description
General part information
A7NNB Series

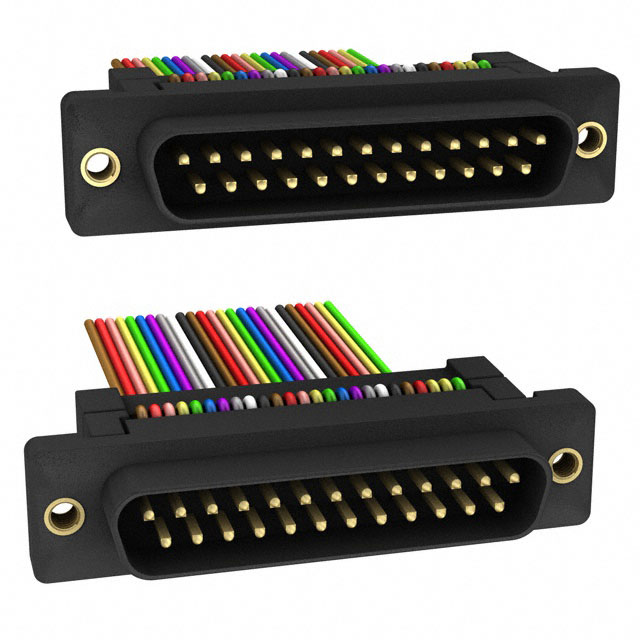

D-Sub Cable Assembly DB25 Multiple, Ribbon 10.00' (3.05m) Plug, Male Pins to Plug, Male Pins Unshielded
Documents
Technical documentation and resources
