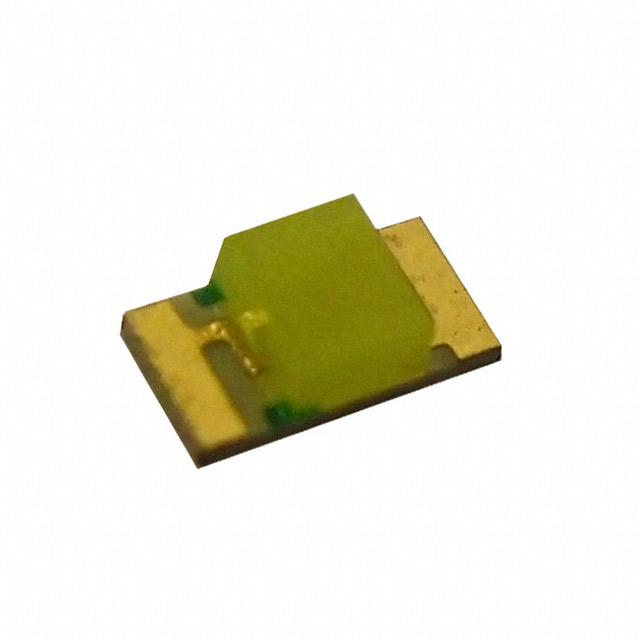

XZCWD55F-2
ActiveSunLED
LED WHITE 2SMD BOTTOM ENT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZCWD55F-2
ActiveSunLED
LED WHITE 2SMD BOTTOM ENT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZCWD55F-2 |
|---|---|
| Color | White |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 1.05 mm |
| Lens Color | Yellow |
| Lens Size [x] | 1.4 mm |
| Lens Size [y] | 1.6 mm |
| Lens Style | Rectangle with Flat Top |
| Millicandela Rating | 248 mcd |
| Mounting Type | Surface Mount, Bottom Entry |
| Package / Case | 1206 (3016 Metric) |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 1.6 mm |
| Supplier Device Package | 2-SMD |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2000 | $ 0.15 | |
| 4000 | $ 0.14 | |||
| 6000 | $ 0.13 | |||
| 10000 | $ 0.13 | |||
| 14000 | $ 0.13 | |||
| 20000 | $ 0.12 | |||
| 50000 | $ 0.12 | |||
Description
General part information
XZCWD55 Series
White LED Indication - Discrete 3.3V 1206 (3016 Metric)
