AA-200-24 Series

Part	Voltage	Operating Temperature (Max)	Operating Temperature (Min)	Fan Location	Current	Dimensions - Overall Height	Dimensions - Overall Length	Dimensions - Overall Width	Heat Transfer Type	Power - Cooling	Weight	Power - Input
Laird Thermal Systems, Inc. AA-200-24-24-00-10	24 V	56 °C	-10 °C	Cold Side Warm Side	9.9 A	178 mm	400 mm	153 mm	Air to Air	180 W

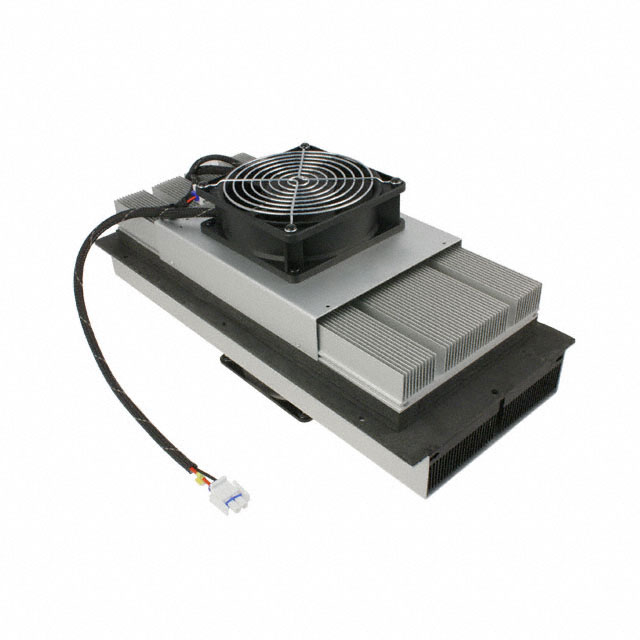

Laird Thermal Systems, Inc. AA-200-24-44-LK-XX	24 V	55 °C	-40 °C	Cold Side Warm Side	11.3 A	178 mm	400 mm	180 mm	Air to Air	193 W	15 lbs
Laird Thermal Systems, Inc. AA-200-24-22-00-00	24 V	48 °C	-10 °C	Cold Side Warm Side	11.3 A	178 mm	400 mm	153 mm	Air to Air	193 W	16 lbs	271 W
Laird Thermal Systems, Inc. AA-200-24-44-00-XX	24 V	55 °C	-40 °C	Cold Side Warm Side	11.3 A	178 mm	400 mm	180 mm	Air to Air	193 W	15 lbs
