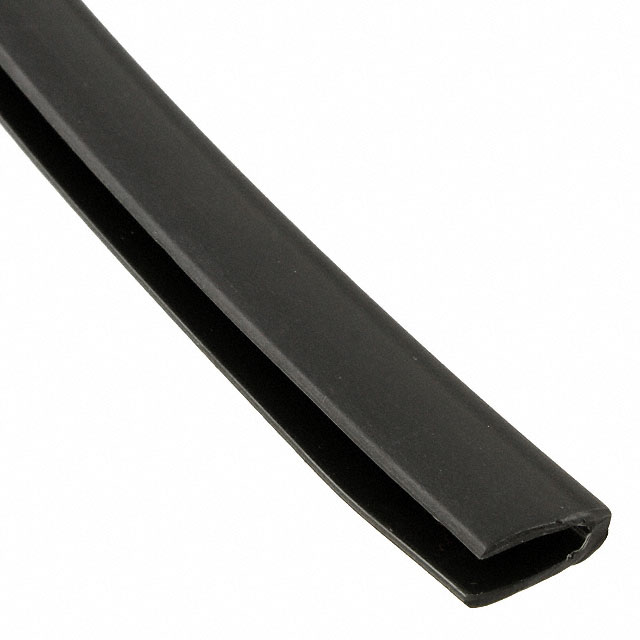

RAYRIM-NR9-0-SP

Active

TE Connectivity Raychem Cable Protection

GROMMET EDGE SOLID PO BLACK

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

GROMMET EDGE SOLID PO BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	RAYRIM-NR9-0-SP

Bushing, Grommet Type	Grommet - Edging, Solid
Color	Black
Features	Adhesive Lined, Heat Shrinkable, Flame Retardant
For Use With/Related Products	Irregular Holes, Edges
Material	Polyolefin (PO), Irradiated
Panel Cutout Dimensions [x]	50 m
Panel Cutout Dimensions [x]	164.1 ft
Panel Thickness [Max]	0.177 "
Panel Thickness [Max]	4.5 mm
Panel Thickness [Min]	0.165 in
Panel Thickness [Min]	4.2 mm

Part	Material	Color	For Use With/Related Products	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Features	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]	Bushing, Grommet Type
TE Connectivity Raychem Cable Protection RAYRIM-NR9-0-SP	Polyolefin (PO) Irradiated	Black	Edges Irregular Holes	0.165 in	0.177 "	4.5 mm	4.2 mm	Adhesive Lined Flame Retardant Heat Shrinkable	50 m	164.1 ft	Grommet - Edging Solid
TE Connectivity Raychem Cable Protection RAYRIM-NR7-0-STK	Polyolefin (PO) Irradiated	Black	Edges Irregular Holes	0.039 in	0.063 in	1.6 mm	0.99 mm	Adhesive Lined Flame Retardant Heat Shrinkable	1.22 m	4 ft	Grommet - Edging Solid
TE Connectivity Raychem Cable Protection RAYRIM-NR9-0-STK	Polyolefin (PO) Irradiated	Black	Edges Irregular Holes	0.165 in	0.177 "	4.5 mm	4.2 mm	Adhesive Lined Flame Retardant Heat Shrinkable	1.22 m	4 ft	Grommet - Edging Solid

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1500	$ 8.01

General part information

Edging - 164.1' L (50.00m) Grommet - Edging, Solid Black
