86561-7

Active

TE Connectivity AMP Connectors

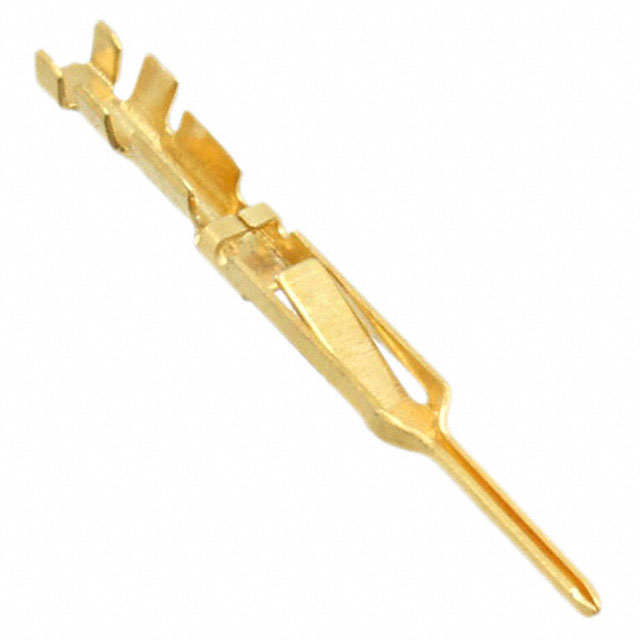

CONTACT FLAT FLEX PIN GOLD

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONTACT FLAT FLEX PIN GOLD

Technical Specifications

Parameters and characteristics commom to parts in this series

CONTACT FLAT FLEX PIN GOLD

Part	Pin or Socket	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Contact Termination	Wire Gauge [Min]	Wire Gauge [Max]
TE Connectivity AMP Connectors 86561-7	Pin	Gold	50 µin	1.27 µm	Crimp	22 AWG	26 AWG
TE Connectivity AMP Connectors 86561-9	Pin	Tin-Lead	100 µin	2.54 µm	Crimp	22 AWG	26 AWG
TE Connectivity AMP Connectors 1-86561-0	Pin	Tin	100 µin	2.54 µm	Crimp	22 AWG	26 AWG
TE Connectivity AMP Connectors 86561-6	Pin	Gold	15 µin	0.38 µm	Crimp	22 AWG	26 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	30000	$ 3.09

General part information

Contact Crimp Pin 22-26 AWG Gold

Technical documentation and resources

No documents available
