Q-0L02Z0008084i

Active

Amphenol Custom Cable

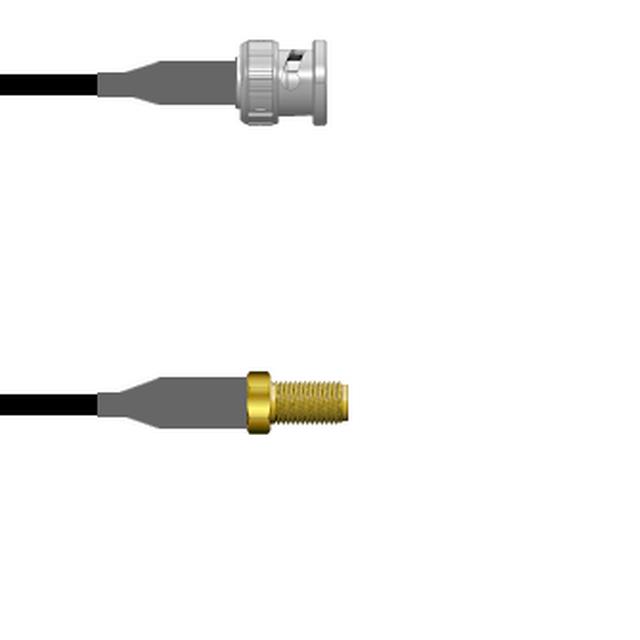

CBL ASSY BNC-SMA PLUG-JACK 7'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0L02Z0008084i

Active

Amphenol Custom Cable

CBL ASSY BNC-SMA PLUG-JACK 7'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0L02Z0008084i

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMA Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	84 in
Length	2.1 m
Length	7 ft
Overall Impedance	50 Ohms
Style	BNC to SMA

Q-0L02Z0 Series

Part	Frequency - Max [Max]	Color	1st Contact Gender	Length	Length	Length	2nd Connector Mounting Type	Style	1st Connector Mounting Type	Overall Impedance	Cable Type	Features	2nd Connector	2nd Contact Gender	1st Connector
Amphenol Custom Cable Q-0L02Z00081.5M	4 GHz	Black	Male	59.1 in	4.9 ft	1.5 m	Free Hanging (In-Line)	BNC to SMA	Free Hanging (In-Line)	50 Ohms	RG-58	Shielded	SMA Jack	Female	BNC Plug
Amphenol Custom Cable Q-0L02Z0008001M	4 GHz	Black	Male	39.4 in	3.3 ft	1 m	Free Hanging (In-Line)	BNC to SMA	Free Hanging (In-Line)	50 Ohms	RG-58	Shielded	SMA Jack	Female	BNC Plug
Amphenol Custom Cable Q-0L02Z0008060i	4 GHz	Black	Male	5 '	5 ft	1.5 m	Free Hanging (In-Line)	BNC to SMA	Free Hanging (In-Line)	50 Ohms	RG-58	Shielded	SMA Jack	Female	BNC Plug
Amphenol Custom Cable Q-0L02Z0008002M	4 GHz	Black	Male	78.7 in	6.6 ft	2 m	Free Hanging (In-Line)	BNC to SMA	Free Hanging (In-Line)	50 Ohms	RG-58	Shielded	SMA Jack	Female	BNC Plug
Amphenol Custom Cable Q-0L02Z0008006i	4 GHz	Black	Male	6 in		152.4 mm	Free Hanging (In-Line)	BNC to SMA	Free Hanging (In-Line)	50 Ohms	RG-58	Shielded	SMA Jack	Female	BNC Plug
Amphenol Custom Cable Q-0L02Z00082.5M	4 GHz	Black	Male	98.4 in	8.2 '	2.5 m	Free Hanging (In-Line)	BNC to SMA	Free Hanging (In-Line)	50 Ohms	RG-58	Shielded	SMA Jack	Female	BNC Plug
Amphenol Custom Cable Q-0L02Z00080.5M	4 GHz	Black	Male	19.69 "		50 cm	Free Hanging (In-Line)	BNC to SMA	Free Hanging (In-Line)	50 Ohms	RG-58	Shielded	SMA Jack	Female	BNC Plug
Amphenol Custom Cable Q-0L02Z0008012i	4 GHz	Black	Male	12 "		304.8 mm	Free Hanging (In-Line)	BNC to SMA	Free Hanging (In-Line)	50 Ohms	RG-58	Shielded	SMA Jack	Female	BNC Plug
Amphenol Custom Cable Q-0L02Z0008084i	4 GHz	Black	Male	84 in	7 ft	2.1 m	Free Hanging (In-Line)	BNC to SMA	Free Hanging (In-Line)	50 Ohms	RG-58	Shielded	SMA Jack	Female	BNC Plug
Amphenol Custom Cable Q-0L02Z0008108i	4 GHz	Black	Male	108 in	9 ft	2.7 m	Free Hanging (In-Line)	BNC to SMA	Free Hanging (In-Line)	50 Ohms	RG-58	Shielded	SMA Jack	Female	BNC Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 85.92
		25	$ 84.23
		50	$ 82.54
		100	$ 80.84
		250	$ 79.15

Description

General part information

Q-0L02Z0 Series

Cable Assembly Coaxial BNC to SMA RG-58 84.0" (2.1m) 7.0'

Documents

Technical documentation and resources

No documents available
