BAT-HLD-001-THM
ActiveTE Connectivity Linx

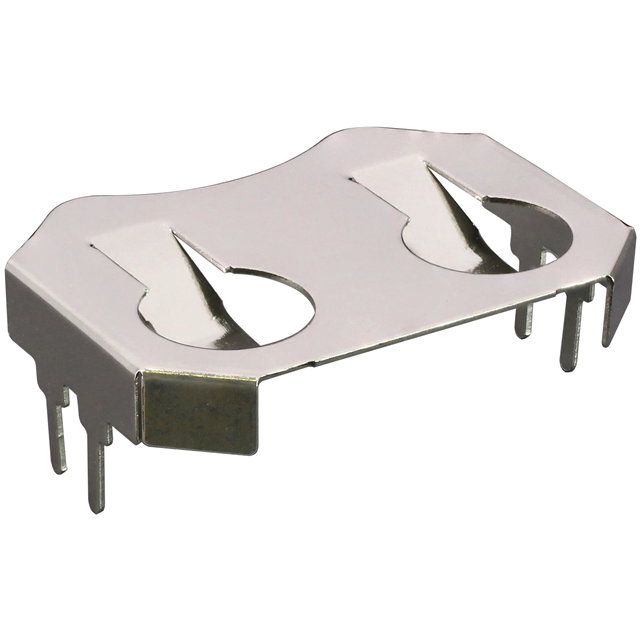

BATT RETAINER COIN 20MM PC PIN
Deep-Dive with AI
Search across all available documentation for this part.
BAT-HLD-001-THM
ActiveTE Connectivity Linx
BATT RETAINER COIN 20MM PC PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BAT-HLD-001-THM |
|---|---|
| Battery Cell Size | Coin |
| Battery Cell Size | 20 mm |
| Battery Series | 2025, 2032 |
| Height Above Board | 0.165 " |
| Height Above Board | 4.2 mm |
| Number of Cells | 1 |
| Style | Retainer |
| Termination Style | PC Pin |
BAT-HLD Series
| Part | Number of Cells | Battery Cell Size | Battery Cell Size | Termination Style | Battery Series | Height Above Board | Height Above Board | Style | Mounting Type | Height Above Board [z] | Height Above Board [z] | Operating Temperature [Min] | Operating Temperature [Max] | Battery Type, Function | Battery Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Linx | 1 | Coin | 20 mm | PC Pin | 2025 2032 | 0.165 " | 4.2 mm | Retainer | |||||||
TE Connectivity Linx | 1 | Coin | 20 mm | SMD (SMT) Tab | 2016 2020 2025 2032 | 0.154 in | 3.9 mm | Retainer | PCB Surface Mount | ||||||
TE Connectivity Linx | 1 | Coin | 20 mm | PC Pin | 2016 | Retainer | 0.11 " | 2.8 mm | |||||||
TE Connectivity Linx | AA | SMD (SMT) Tab | 0.25 in | 6.35 mm | PCB Surface Mount | -25 °C | 85 °C | Contact (Single) Cylindrical | |||||||
TE Connectivity Linx | 1 | Coin | 20 mm | PC Pin | 2016 2020 2025 2032 | Retainer | |||||||||
TE Connectivity Linx | 1 | Coin | 16 mm | PC Pin | F3 iButton® | 0.15 " | 3.81 mm | Holder (Open) | -25 °C | 85 °C | Coin Cell Holder | 1620 1632 | |||
TE Connectivity Linx | 1 | Coin | 12 mm | SMD (SMT) Tab | 1216 1225 | 0.14 in | 3.55 mm | Retainer | PCB Surface Mount | ||||||
TE Connectivity Linx | 1 | Coin | 24.5 mm | SMD (SMT) Tab | Retainer | PCB Surface Mount | 0.271 in | 6.88 mm | 2450 | ||||||
TE Connectivity Linx | 1 | Coin | 12 mm | SMD (SMT) Tab | 1216 1225 | 0.14 in | 3.55 mm | Retainer | PCB Surface Mount | ||||||
TE Connectivity Linx | 1 | Coin | 12 mm | PC Pin | 1216 1225 | 0.14 in | 3.55 mm | Retainer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.36 | |
| 500 | $ 0.34 | |||
Description
General part information
BAT-HLD Series
Battery Retainer Coin, 20.0mm 1 Cell PC Pin
