4-1437387-7

Obsolete

TE Connectivity AMP Connectors

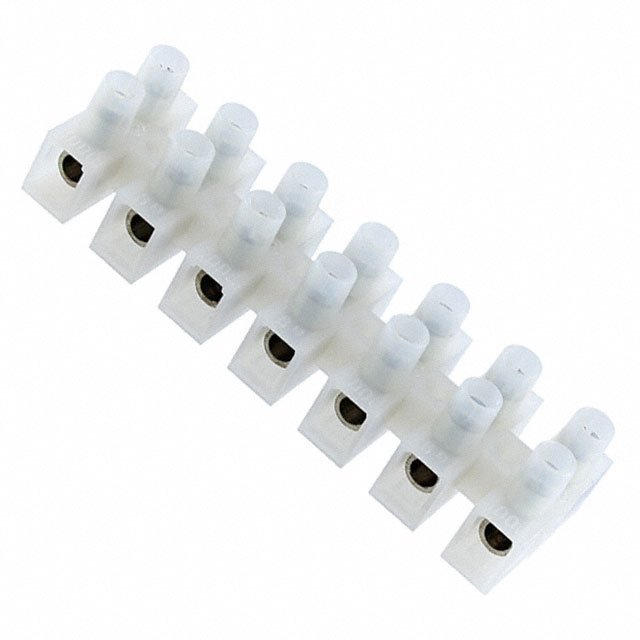

CONN TERM STRIP 7CIRC 0.472"

Deep-Dive with AI

Search across all available documentation for this part.

4-1437387-7

Obsolete

TE Connectivity AMP Connectors

CONN TERM STRIP 7CIRC 0.472"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

1437387 Series

7 Circuit 0.472" (12.00mm) Eurostyle Terminal Strip Connector Screws

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	4-1437387-7	1437387 Series

Barrier Type	Enclosed	Enclosed
Bottom Termination	Closed	Closed
Color	Natural	Natural
Current Rating (Amps)	50 A	30 - 65 A
Material - Insulation	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2	UL94 V-2
Mounting Type	Panel, Chassis	Panel, Chassis
Number of Circuits	7	1 - 12
Number of Circuits	-	8
Number of Rows	2	2
Number of Wire Entries	14	2 - 20
Operating Temperature	212 °F	212 °F
Operating Temperature	-	-35 °C
Operating Temperature	-	100 °C
Pitch [x]	12 mm	12 - 14.5 mm
Pitch [x]	0.472 in	0.472 - 0.571 in
Terminal Block Type	Eurostyle Terminal Strip	Eurostyle Terminal Strip
Terminal Screw Finish	Chromate, Zinc	Chromate, Zinc, Clear Chromate
Terminal Screw Material	Steel	Steel
Top Termination	Screws	Screws
Voltage Rating	250 VDC	250 - 300 VDC
Wire Gauge [Max]	22 AWG	14 - 26 AWG
Wire Gauge [Min]	8 AWG	6 - 12 AWG

1437387 Series

CONN TERM STRIP 2CIRC 0.315"

Part	Number of Rows	Number of Circuits	Barrier Type	Operating Temperature	Terminal Screw Material	Material Flammability Rating	Number of Wire Entries	Current Rating (Amps)	Terminal Screw Finish	Voltage Rating	Mounting Type	Material - Insulation	Terminal Block Type	Color	Top Termination	Wire Gauge [Max]	Wire Gauge [Min]	Bottom Termination	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity AMP Connectors 8-1437387-5	2	2	Enclosed	212 °F	Steel	UL94 V-2	4	30 A	Chromate, Zinc	250 VDC	Chassis, Panel	Polyamide (PA66), Nylon 6/6	Eurostyle Terminal Strip	Natural	Screws	26 AWG	12 AWG	Closed
TE Connectivity AMP Connectors 9-1437387-4	2	7	Enclosed	212 °F	Steel	UL94 V-2	14	30 A	Chromate, Zinc	250 VDC	Chassis, Panel	Polyamide (PA66), Nylon 6/6	Eurostyle Terminal Strip	Natural	Screws	26 AWG	12 AWG	Closed
TE Connectivity AMP Connectors 4-1437387-7	2	7	Enclosed	212 °F	Steel	UL94 V-2	14	50 A	Chromate, Zinc	250 VDC	Chassis, Panel	Polyamide (PA66), Nylon 6/6	Eurostyle Terminal Strip	Natural	Screws	22 AWG	8 AWG	Closed	12 mm	0.472 in
TE Connectivity AMP Connectors 9-1437387-1	2	5	Enclosed	212 °F	Steel	UL94 V-2	10	30 A	Chromate, Zinc	250 VDC	Chassis, Panel	Polyamide (PA66), Nylon 6/6	Eurostyle Terminal Strip	Natural	Screws	26 AWG	12 AWG	Closed
TE Connectivity AMP Connectors 6-1437387-2	2	4	Enclosed	212 °F	Steel	UL94 V-2	8	40 A	Chromate, Zinc	300 VDC	Chassis, Panel	Polyamide (PA66), Nylon 6/6	Eurostyle Terminal Strip	Natural	Screws	18 AWG	8 AWG	Closed	13.5 mm	0.531 in
TE Connectivity AMP Connectors 3-1437387-4	2	1	Enclosed		Steel	UL94 V-2	2	40 A	Clear Chromate, Zinc	250 VDC	Chassis, Panel	Polyamide (PA66), Nylon 6/6	Eurostyle Terminal Strip	Natural	Screws	22 AWG	10 AWG	Closed			-35 °C	100 °C
TE Connectivity AMP Connectors 7-1437387-5	2	6	Enclosed	212 °F	Steel	UL94 V-2	12	65 A	Chromate, Zinc	300 VDC	Chassis, Panel	Polyamide (PA66), Nylon 6/6	Eurostyle Terminal Strip	Natural	Screws	14 AWG	6 AWG	Closed	14.5 mm	0.571 in
TE Connectivity AMP Connectors 7-1437387-3	2	5	Enclosed	212 °F	Steel	UL94 V-2	10	65 A	Chromate, Zinc	300 VDC	Chassis, Panel	Polyamide (PA66), Nylon 6/6	Eurostyle Terminal Strip	Natural	Screws	14 AWG	6 AWG	Closed	14.5 mm	0.571 in
TE Connectivity AMP Connectors 7-1437387-8	2	10	Enclosed	212 °F	Steel	UL94 V-2	20	65 A	Chromate, Zinc	300 VDC	Chassis, Panel	Polyamide (PA66), Nylon 6/6	Eurostyle Terminal Strip	Natural	Screws	14 AWG	6 AWG	Closed	14.5 mm	0.571 in
TE Connectivity AMP Connectors 5-1437387-8	2	12	Enclosed	212 °F	Steel	UL94 V-2		50 A	Chromate, Zinc	250 VDC	Chassis, Panel	Polyamide (PA66), Nylon 6/6	Eurostyle Terminal Strip	Natural	Screws	22 AWG	8 AWG	Closed	12 mm	0.472 in
