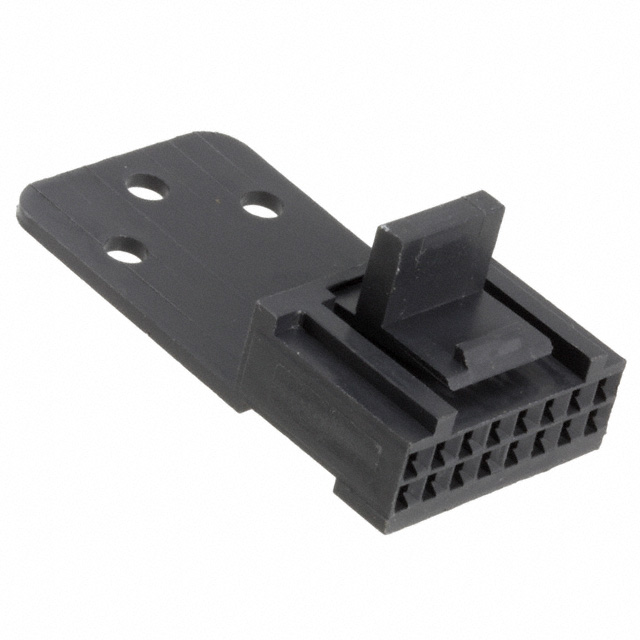

104422-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 16POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
104422-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 16POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 104422-1 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Features | Strain Relief |
| Insulation Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Row Spacing | 2.54 mm |
| Row Spacing [x] | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.24 | |
| 10 | $ 1.99 | |||
| 25 | $ 1.98 | |||
| 50 | $ 1.96 | |||
| 100 | $ 1.80 | |||
| 250 | $ 1.79 | |||
| 500 | $ 1.63 | |||
| 1000 | $ 1.46 | |||
| 2500 | $ 1.35 | |||
104422 Series
CONN RCPT HSG 16POS 2.54MM
| Part | Connector Type | Contact Termination | Fastening Type | Insulation Material | Note | Contact Type | Row Spacing [x] | Row Spacing | Mounting Type | Color | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Pitch [x] | Pitch [x] | Features | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 104422-1 | Receptacle | Crimp | Locking Ramp | Thermoplastic | Contacts Not Included | Female Socket | 0.1 in | 2.54 mm | Free Hanging (In-Line) | Black | -65 ░C | 105 ░C | 16 | 2.54 mm | 0.1 in | Strain Relief | 2 |
Description
General part information
104422 Series
16 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
Documents
Technical documentation and resources
No documents available
