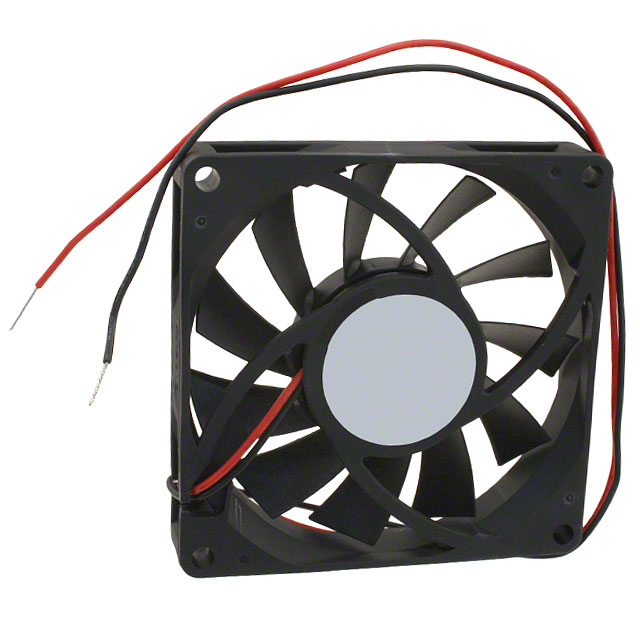

EFB0812HHB-F00

Obsolete

Delta Electronics

FAN AXIAL 80X15MM 12VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL 80X15MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	EFB0812HHB-F00

Air Flow	1.37 m³/min
Air Flow	48.8 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	0.33 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	41 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	3.96 W
RPM	3800 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	0.171 in H2O
Static Pressure	42.6 Pa
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	5 VDC
Weight	0.148 lb
Weight	67.13 g
Width [x]	15 mm

Part	Material - Blade	Fan Type	Static Pressure	Static Pressure	Voltage - Rated	Current Rating (Amps)	Approval Agency	Width [x]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Termination	RPM	Air Flow	Air Flow	Bearing Type	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Weight	Weight	Lifetime @ Temp.	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Noise	Features
Delta Electronics EFB0812HHB	Plastic	Tubeaxial	0.171 in H2O	42.6 Pa	12 VDC	0.33 A	CE CSA UL VDE	15 mm	70 °C	70 °C	-10 °C	-10 °C	2 Wire Leads	3800 RPM	1.37 m³/min	48.8 CFM	Ball	5 VDC	13.2 VDC	Plastic	0.148 lb	67.13 g	70000 Hrs	3.96 W	80 mm	80 mm	41 dB
Delta Electronics EFB0812HHB-F00	Plastic	Tubeaxial	0.171 in H2O	42.6 Pa	12 VDC	0.33 A	CE CSA UL VDE	15 mm	70 °C	70 °C	-10 °C	-10 °C	3 Wire Leads	3800 RPM	1.37 m³/min	48.8 CFM	Ball	5 VDC	13.2 VDC	Plastic	0.148 lb	67.13 g	70000 Hrs	3.96 W	80 mm	80 mm	41 dB	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics EFB0812HB	Plastic	Tubeaxial	0.134 in H2O	33.5 Pa	12 VDC	0.21 A	CE CSA UL VDE	15 mm					2 Wire Leads	3300 RPM			Ball	5 VDC	13.8 VDC	Plastic	0.148 lb	67.13 g		2.52 W	80 mm	80 mm	37 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 48.8 CFM (1.37m³/min) 3 Wire Leads
