KX14-60K2DE

Active

JAE Electronics

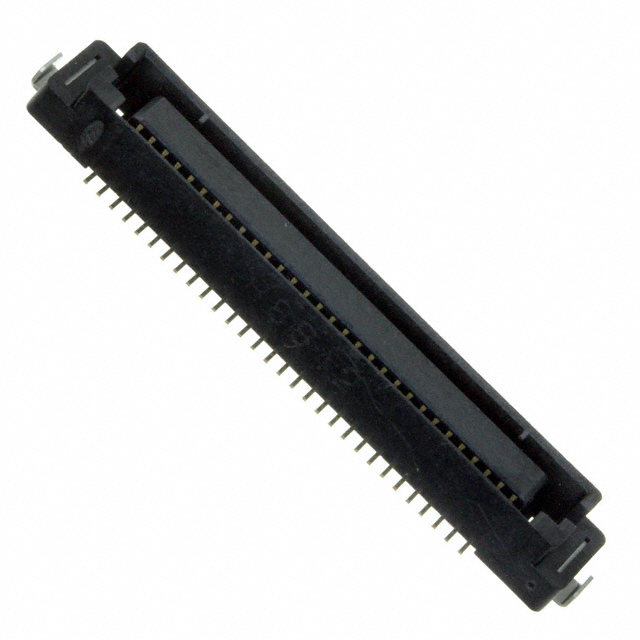

CONN RCPT 60POS SMD GOLD

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT 60POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	KX14-60K2DE

Connector Type	Receptacle, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention, Board Guide
Height Above Board	3.55 mm
Height Above Board	0.14 in
Mated Stacking Heights	4 mm, 6 mm, 5 mm
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Height Above Board	Height Above Board	Features	Pitch [x]	Pitch [x]	Mated Stacking Heights	Mounting Type	Number of Rows	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Positions	Height Above Board [z]
JAE Electronics KX14-60K5D-E1000E	0.258 "	6.55 mm	Board Guide Solder Retention	0.8 mm	0.031 in	7 mm 8 mm 9 mm	Surface Mount	2	Gold	4 Áin	0.1 Ám	Receptacle Outer Shroud Contacts	60
JAE Electronics KX14-60K2DE	0.14 in	3.55 mm	Board Guide Solder Retention	0.8 mm	0.031 in	4 mm 5 mm 6 mm	Surface Mount	2	Gold	4 Áin	0.1 Ám	Receptacle Outer Shroud Contacts	60
JAE Electronics KX14-60K8DE		9.55 mm	Board Guide Solder Retention	0.8 mm	0.031 in		Surface Mount	2	Gold	4 Áin	0.1 Ám	Receptacle Outer Shroud Contacts	60	0.376 in
JAE Electronics KX14-60K8D-E650E		9.55 mm	Board Guide Solder Retention	0.8 mm	0.031 in		Surface Mount	2	Gold	4 Áin	0.1 Ám	Receptacle Outer Shroud Contacts	60	0.376 in
JAE Electronics KX14-60K2D-E1000E	0.14 in	3.55 mm	Board Guide Solder Retention	0.8 mm	0.031 in	4 mm 5 mm 6 mm	Surface Mount	2	Gold	4 Áin	0.1 Ám	Receptacle Outer Shroud Contacts	60

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	106	$ 4.77

General part information

60 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
