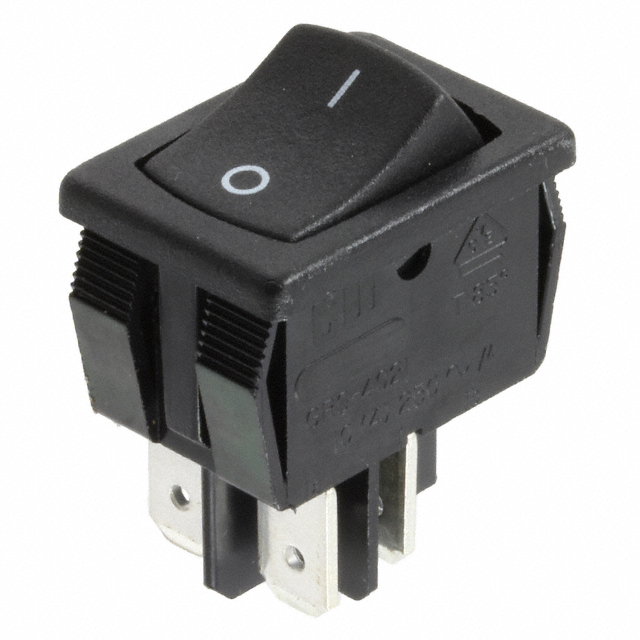

GRSV-4021-0006
ObsoleteCW Industries
ROCKER SWITCHES MINI ROCKER SWTICH
GRSV-4021-0006
ObsoleteCW Industries
ROCKER SWITCHES MINI ROCKER SWTICH
Description
General part information
GRSV Series
Rocker Switch DPST 16A (AC), 10A (DC) 125 V Panel Mount, Snap-In
Technical Specifications
Parameters and characteristics for this part
| Specification | GRSV-4021-0006 |
|---|---|
| Actuator Marking | O |
| Actuator Type | Concave (Curved) |
| Circuit | DPST |
| Color - Actuator/Cap | Black |
| Current Rating | 10 A, 16 A |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -20 °C |
| Panel Cutout Length | 19.2 mm |
| Panel Cutout Shape | Rectangular |
| Panel Cutout Width | 12.9 mm |
| Quick Connect Size (0.187") | 0.187 in |
| Switch Function | On-Off |
| Termination Style | Quick Connect |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 14 V |
