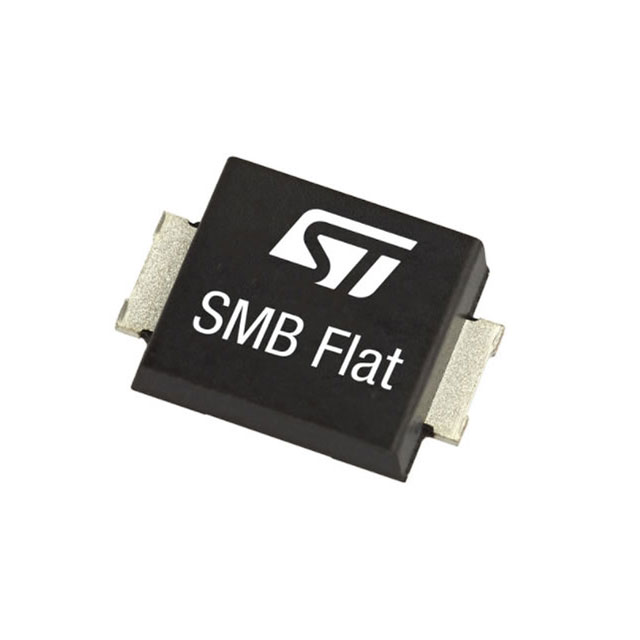

SMB15F64AY

Obsolete

STMicroelectronics

75A@8/20US 134V 1.5KW 71.1V 64V SMB-FLAT ESD AND SURGE PROTECTION (TVS/ESD) ROHS

Deep-Dive with AI

Search across all available documentation for this part.

SMB15F64AY

Obsolete

STMicroelectronics

75A@8/20US 134V 1.5KW 71.1V 64V SMB-FLAT ESD AND SURGE PROTECTION (TVS/ESD) ROHS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SMB15F64AY

Current - Peak Pulse (10/1000µs)	75 A
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	SMB Flat Leads, DO-221AA
Power - Peak Pulse	1.5 kW
Power - Peak Pulse	1500 W
Power Line Protection	False
Qualification	AEC-Q101
Supplier Device Package	SMBflat
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	71.1 V
Voltage - Clamping (Max) @ Ipp [Max]	134 V

SMB15 Series

Part	Voltage - Breakdown (Min) [Min]	Voltage - Clamping (Max) @ Ipp [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Grade	Power - Peak Pulse	Power - Peak Pulse	Voltage - Reverse Standoff (Typ)	Unidirectional Channels [custom]	Qualification	Type	Supplier Device Package	Mounting Type	Package / Case	Voltage - Reverse Standoff (Typ) [Max]	Applications	Current - Peak Pulse (10/1000µs)	Voltage - Clamping (Max) @ Ipp
STMicroelectronics SMB15F12AY	13.3 V	25.3 V	-55 °C	175 ░C	Automotive	1.5 kW	1500 W	12 V	1	AEC-Q101	Zener	SMBflat	Surface Mount	DO-221AA SMB Flat Leads
STMicroelectronics SMB15F6.5A	7.2 V	14.5 V	-55 °C	175 ░C		1.5 kW	1500 W		1		Zener	SMBflat	Surface Mount	DO-221AA SMB Flat Leads	6.5 V	General Purpose	690 A
STMicroelectronics SMB15F16AY	17.9 V	34.7 V	-55 °C	175 ░C	Automotive	1.5 kW	1500 W		1	AEC-Q101	Zener	SMBflat	Surface Mount	DO-221AA SMB Flat Leads	16 V		293 A
STMicroelectronics SMB15F33AY	36.7 V	69.7 V	-55 °C	175 ░C	Automotive	1.5 kW	1500 W		1	AEC-Q101	Zener	SMBflat	Surface Mount	DO-221AA SMB Flat Leads	33 V		143 A
STMicroelectronics SMB15F26A	28.9 V		-55 °C	175 ░C		1.5 kW	1500 W	26 V	1		Zener	SMBflat	Surface Mount	DO-221AA SMB Flat Leads		General Purpose		53.5 V
STMicroelectronics SMB15F5.0AY	6.4 V	13.4 V	-55 °C	175 ░C	Automotive	1.5 kW	1500 W	5 V	1	AEC-Q101	Zener	SMBflat	Surface Mount	DO-221AA SMB Flat Leads			746 A
STMicroelectronics SMB15F64AY	71.1 V	134 V	-55 °C	175 ░C	Automotive	1.5 kW	1500 W		1	AEC-Q101	Zener	SMBflat	Surface Mount	DO-221AA SMB Flat Leads			75 A
STMicroelectronics SMB15F20AY	22.2 V	42.8 V	-55 °C	175 ░C	Automotive	1.5 kW	1500 W	20 V	1	AEC-Q101	Zener	SMBflat	Surface Mount	DO-221AA SMB Flat Leads
STMicroelectronics SMB15F15AY	16.7 V		-55 °C	175 ░C	Automotive	1.5 kW	1500 W	15 V	1	AEC-Q101	Zener	SMBflat	Surface Mount	DO-221AA SMB Flat Leads			308 A	32.5 V
STMicroelectronics SMB15F28AY	31.1 V		-55 °C	175 ░C	Automotive	1.5 kW	1500 W	28 V	1	AEC-Q101	Zener	SMBflat	Surface Mount	DO-221AA SMB Flat Leads			169 A	59 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

LCSC	Piece	1	$ 0.41
		200	$ 0.16
		500	$ 0.15
		1000	$ 0.15

Description

General part information

SMB15 Series

134V Clamp 75A (8/20µs) Ipp Tvs Diode Surface Mount SMBflat
