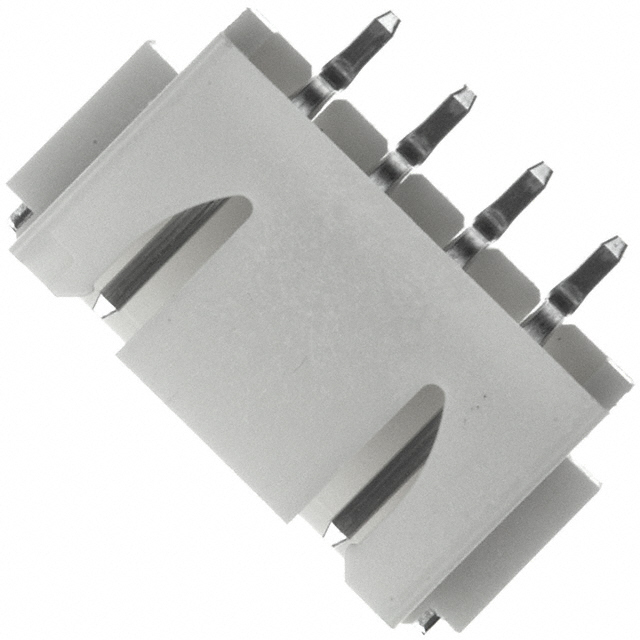

S4B-XH-SM4-TB

Active

JST Sales America Inc.

CONN HEADER SMD R/A 4POS 2.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD R/A 4POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	S4B-XH-SM4-TB

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Detent Lock
Features	Solder Retention
Insulation Color	Natural
Insulation Height	6 mm
Insulation Height	0.236 in
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Contact Finish - Post	Number of Positions	Termination	Insulation Height	Insulation Height	Current Rating (Amps)	Insulation Color	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Voltage Rating	Mounting Type	Contact Type	Material Flammability Rating	Fastening Type	Contact Shape	Shrouding	Style	Contact Material	Number of Rows	Features	Connector Type	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]
JST Sales America Inc. S4B-XH-SM4-TB	Tin	4	Solder	6 mm	0.236 in	3 A	Natural	2.5 mm	0.098 in	All	250 VDC	Surface Mount Right Angle	Male Pin	UL94 V-0	Detent Lock	Square	Shrouded - 4 Wall	Board to Cable/Wire	Copper Alloy	1	Solder Retention	Header	Nylon 6T Polyamide (PA6T)	-25 °C	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount, Right Angle 4 position 0.098" (2.50mm)
